DP-10i Centri Series Power Distribution Panel, Input -60-0VDC, 100A Max per Panel, 10 Outputs, 20A Max per Output, Includes SNMP

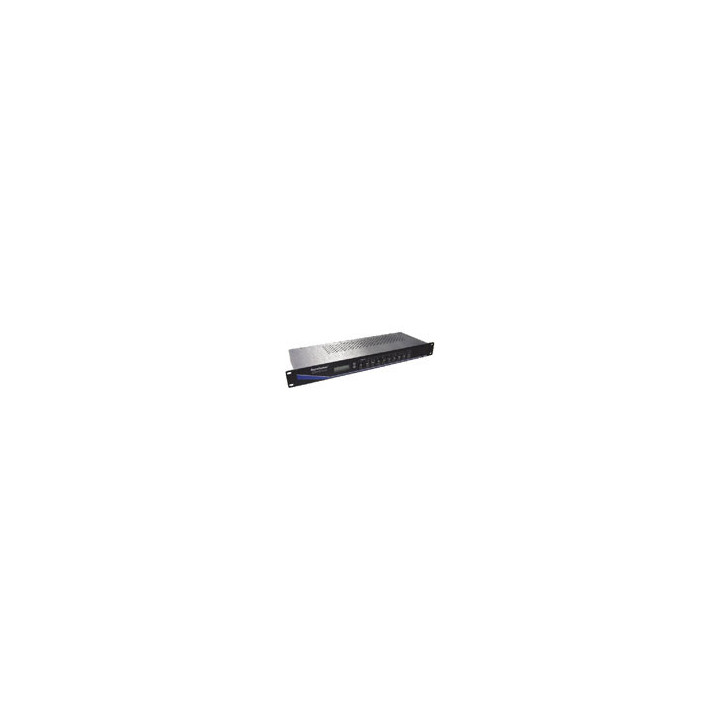

DP-10i Centri Series Power Distribution Panel

The DP-10i-100-MU Centri Series electronic fuse distribution panel is a rack mount (1U) power distribution panel that provides up to 10 load circuits protected by individual electronic fuses. Each circuit can be fused up to 40 Amps, with 100 Amps max for the whole unit. The unit provides real time power monitoring for all connected devices including email notifications. Electronic fuses are remotely resettable and can be configured for auto-reclose conditions.

FEATURES

* Provides internet monitoring and control of DC power distribution

* Individual voltage and current monitoring and control for each output load

* 100 amps maximum continuous input current

* 10 electronically fused outputs with up to 25 amps continuous output each, but must not exceed 100 amps total continuous output

* Each output load circuit features independent on/off control and remote reset

* User adjustable electronic fuses, 1 to 25 amp disconnect in 0.1 amp steps

* RJ45 Ethernet port standard

* Integrated web server for monitoring and control, no additional software required

* Can be configured to issue alarm email when output protection trips

* Front mounted LCD display and indicator LEDs for local monitoring of status, input voltage and current

draw from each outlet

* Low profile 1RU 19'' rack

*DP-10iN-100-MU work with positive ground systems

*DP-10iN-100-MU includes SNMP traps for alarms and monitoring
