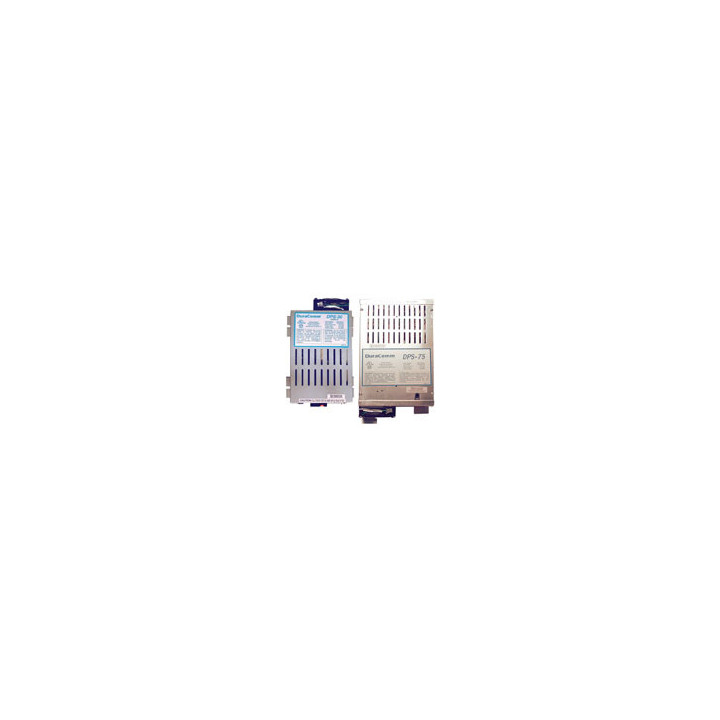

DPS Series Power Source Utilities, Output 13.8VDC, 75A, Suggested Battery Capacity 750Ah

DPS Series Power Source Utilities

Features

- LED diagnostic indicators on all models

- Automatic shutdown on low AC voltage

- Rack mountable with SL rack option

- Manual dual voltage capable, automatic with optional

- ``Smart Charge'' control module

- Filtered & Regulated - The unit will maintain regulation with input voltages from 96~140 VAC and an input frequency range of 47~63 Hz

- Lightweight - The DPS-75 is just 9 lbs, compared to a competitor's ferro-resonant 50 amp model around 60 lbs

- Compact Size - Models DPS-75 and DPS-90 measure 13'' L x 6.5'' W x 3.25'' H while all other models measure10'' L x 6.5'' W x 3.25'' H

- Over Temperature Protection - DPS power supplies will detect excessive temperature conditions and temporarily shut downuntil a safe operating temperature is reached.

- Forced Air Cooling - All models have a thermostatically controlled fan to prevent heat build-up. The fan allows these models to be mounted in nearly any position while also extending the component life up to 10 times

- Standby Battery ``Smart Charger'' / Maintainer / Controller - see IQ-4

- Fused Output - DPS power supplies are protected against short circuit or polarity reversal in the output by easily replaceable standard automotive type fuses

- *DPS-90 is NOT a UL listed product
