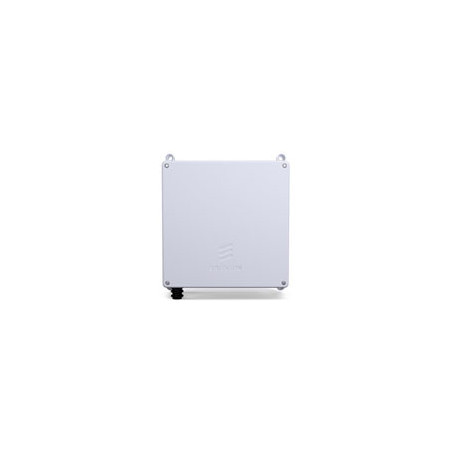

Power 6393 - AC to DC, 200W Power System with AC input and 4x -48VDC outputs

Power 6393 - Modular Power Supply

Power 6393 is a modular power supply concept, that can support either AC or DC input power, for low power applications up to 200W.

The modular solution contains of two Main Units:

Power 6393 AC Main Unit

Power 6393 DC Main Unit

The main units can be configured with either one or two output modules (PDUs).

The PDU's are available in three variants:

PDU 40 01: 1 port Power over Ethernet with surge protection

PDU 40 02: 1 port Power over Ethernet with Lightning protection

PDU 40 03: 2 port -48 VDC with Lightning Protection

The output DC power can by fed through power cable or by Power over Ethernet (PoE) through an Ethernet cable.

The compact Power 6393 follows Ericsson Radio System form factor. It can be used both indoor or outdoor and mounted on walls or poles. Convectional cooling concept avoids usage of fans.

To support various installation scenarios, a wide range of cable diameters are supported.

Power 6393 is protected for overvoltage exposures and is possible to be equipped with lightning protected modules.

LED indicators visualize the power status.

Output power on/off is controlled by push buttons.
