Distribution Series 3 Intelligent 200A Dual Bus 20-output Fuse Panel with TCP/IP for remote monitoring, remote control, HTML and

DISTRIBUTION SERIES 3 Intelligent 10/10 GMT DC Load Distribution Panel

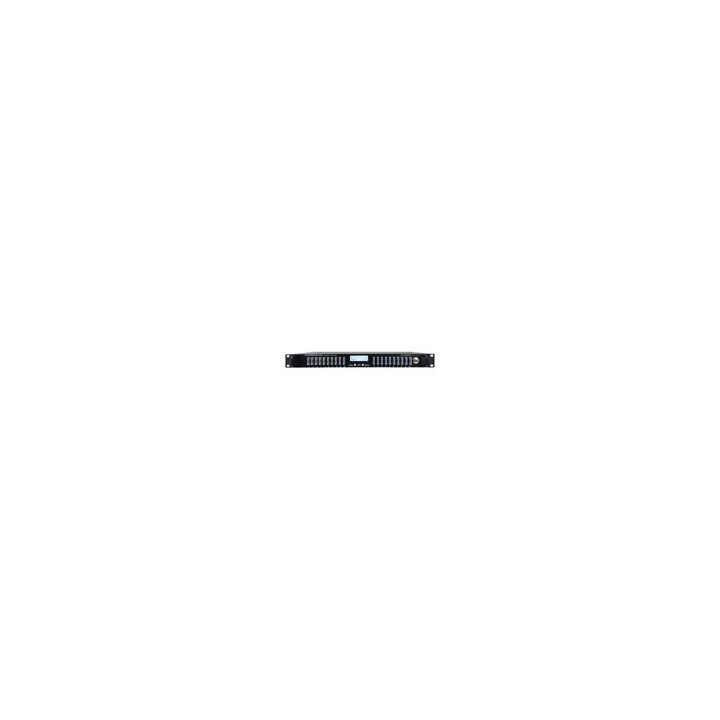

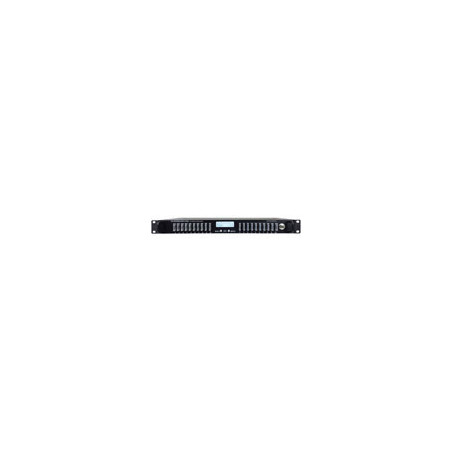

The ICT200DF-20BRC is an intelligent, dual bus, DC load distribution GMT fuse panel with remote monitoring and power control over Ethernet. Each bus is rated at 100A continuous and provides 10 GMT fuse positions, each rated at 20 Amps maximum. The ICT200DF-20BRC is designed for sites requiring I.P.-based remote monitoring and power control of up to 20 connected loads.

The ICT200DF-20BRC DC Distribution Panel provides a dual bus, common ground 1RU solution for applications requiring remote monitoring and power control of up to 20 individual loads. The on-board TCP/IP and web server provide an easy to use, graphical user interface for remote management and power control of system and individual outputs. Each bus supports up to ten 20A GMT fuses for 48 or 24 volt DC applications.

Dual voltages and polarities can be supported on a single panel, useful for sites requiring -48 and +48 or -48 and +24 volts DC to be distributed simultaneously.

Alarms can be sent to multiple email accounts, and each output has definable load-shed settings. The network watchdog feature will ping up to 12 pre-determined I.P. addresses, such as a router, and power-cycle the device if not answered.

There are five digital inputs for connecting site monitoring sensors such as door, fire, and water alarms. These alarms can be given individual names and be sent as email alarm notifications.

The on-board web server means there is no software to maintain, and SNMPv3 is also supported. Firmware can be updated remotely over Ethernet.

The ICT200DF-20BRC allows each connected load to be monitored, power cycled, or taken off-line. This functionality can be used to conserve power, troubleshoot devices, and reboot connected loads remotely, possibly preventing or delaying the need for a costly site visit.

Features

- 200A continuous system rating / 100A per bus +/-24 or +/-48 VDC

- 20A GMT fuses per output (16A continuous)

- TCP/IP remote management and power control of individual outputs

- Ten fully managed outputs per bus Independent Form C alarm contacts for each bus

- Remote firmware update capability

- HTTPS, SMTP, SNMPv3 protocols supported

- Monitoring and alarm reporting of each output for pinpointing of issues with connected loads

- Each output has adjustable load-shed settings

- Adjustable power-on sequencing

- Site monitoring sensor inputs with alarm reporting

- Data logging

- 2-year warranty
