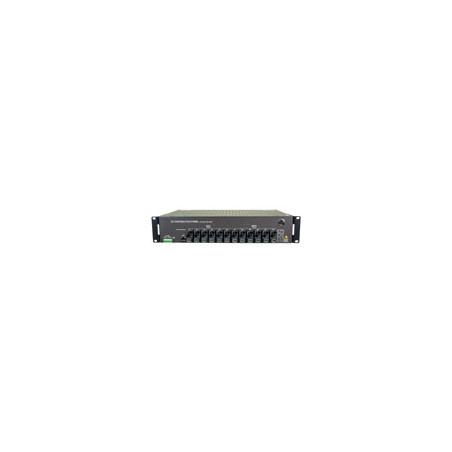

Energy Manager Series 300A 12-output Dual-Feed High Current DC Distribution Panel with 50 Amp Output Rating, 48VDC, TCP/IP for r

ENERGY MANAGER SERIES

Intelligent 300A DC Load Distribution Panel with Remote Management of 50-Amp Load Outputs

The ICT300DB-12IRC DC Distribution Panel provides a dual feed, common ground 2RU solution for -48 volt DC applications requiring remote monitoring and power control of up to 12 individual loads. Each bus is rated at 150 Amps and provides six outputs rated at 50 Amps each. The integrated TCP/IP controller and web server provides a secure, easy to use graphical user interface for remote management and power control of system and individual outputs. SNMPv3 is supported for use with Network Management Systems. Firmware can be updated remotely over Ethernet.

Alarms can be sent to multiple email accounts, and each output has definable load-shed settings. The network watchdog feature will ping up to 12 pre-determined I.P. addresses, such as a router, and power-cycle the device if no response is received.

The ENERGY MANAGER SERIES allows each connected load to be remotely monitored, power cycled, or taken off-line. This functionality can be used to conserve power, troubleshoot devices, and reboot connected loads remotely, possibly preventing or delaying the need for a costly site visit.

Front access to load breakers simplifies installation and changes in enclosed racks or confined spaces. Convection cooling provides enhanced reliability.

Features

- 2RU, 19 inch design

- Convection cooled

- -48 VDC (nominal) operating voltage

- 300A system rating / 150A per bus

- 12 outputs (6/bus) rated at 50A each with remote ON/OFF control

- TCP/IP remote management and power control of individual outputs using secure web browser or SNMPv3

- Monitoring and alarm reporting of each output

- Each output has adjustable load-shed settings

- Network ping detection circuitry

- Adjustable power-on sequencing

- Data logging

- 2-year warranty
