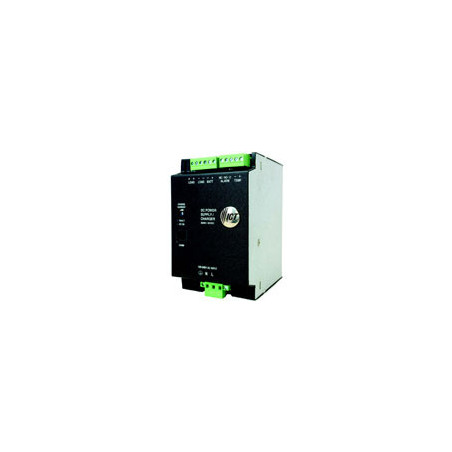

DIN Rail Mount DC Power Supply with Battery Charger and LVD, 360 Watts, 48VDC Output

DIN SERIES POWER SUPPLIES

48 and 24 Volt, 360 Watt DC Power Supplies for DIN Rail Applications

The ICT DIN Rail DC power supply with integrated battery charging and low voltage disconnect provides 360 watts of 48 or 24 volt DC output. It features wide-ranging AC input, low-noise FCC Class B emissions, temperature-compensated charging, adjustable charge current, and Form C alarm contacts.

The ICT DIN Series power supply can be paired with the ICT DIN Series power distribution unit for a fully remote monitored and managed DC power solution over Ethernet.

The ICT DIN Series is designed, manufactured and supported in North America to meet the need for wireless communications, broadband and other demanding DC power applications.

Features

- 360 Watt 48 or 24 Volt DC Output

- 120-240 Volt AC input

- 90 to 91% efficiency

- -30oC to +60oC operating temperature range

- Integrated Battery Charging and Low Voltage Disconnect

- Adjustable battery charge current

- Dual load connectors for installation flexibility

- Temperature compensated battery charging

- Form C alarm contacts

- Serial communications port for remote monitoring over Ethernet when used with ICT Intelligent DIN Power Distribution Unit
