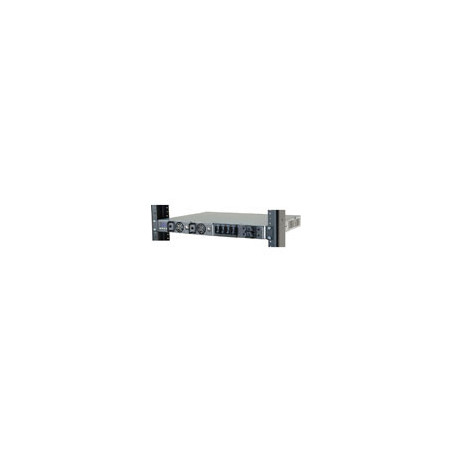

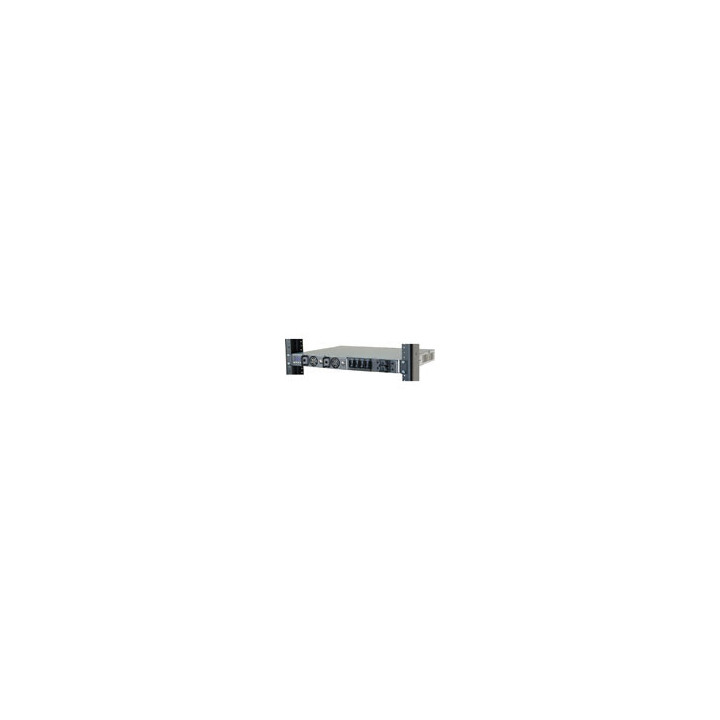

ICT Intelligent Power Shelf w/Single bat

MODULAR POWER SERIES

48 and 24 Volt Redundant Hot Swap DC Power System

The ICT Modular Power Series system provides flexible, managed DC power up to 6KW for a broad range of communications and broadband applications. The foundation is the power shelf and 700 or 1500 watt hot swappable high efficiency power modules. A number of optional factory-installed modules can be selected to provide TCP/IP monitoring and control, advanced battery management features, battery breakers, low voltage disconnects, and four-position breaker-protected power distribution including load current monitoring and remote power cycling over Ethernet.

A dedicated slot holds the optional Intelligent Control Module for full TCP/IP remote monitoring and control. When combined with the optional Battery Management Module, the Intelligent Control Module also provides advanced sealed lead acid battery functions including battery state of charge, estimated run time remaining, and battery discharge testing. Li-ion battery management systems are supported as well.

One or two Load Distribution Modules can be ordered for supporting up to eight load devices. Rated at 25A max. each, every output is capable of monitoring and reporting load current conditions. Remote power control over Ethernet allows for the power-cycling or de-energizing of individual loads without having to visit the site.

The ICT Modular Power Series is designed, manufactured and supported in North America to meet the need for wireless communications, broadband and other critical DC power applications.

Features

- Up to four hot swappable 700 or 1500 watt, 48 or 24 volt power modules

- 100-300 volts AC input Up to 95% efficiency

- -30 C to +60 C operating temperature range

- TCP/IP Ethernet is available and provides complete easy-to-use remote monitoring and control of the power system using secure graphical user interface or SNMPv3

- Battery Backup with 150A LVD is available with adjustable disconnect and reconnect voltage setpoints

- Single or Dual 100A battery disconnect breakers available

- User Adjustable output voltages and battery charge current limit

- Advanced SLA Battery Management features include state of charge, estimated run-time remaining and discharge testing

- Support for Li-ion battery management systems

- Available Load Distribution Module provides 4 fully managed breaker-protected 25A outputs

- Digital and Analog inputs for site monitoring sensor reporting
