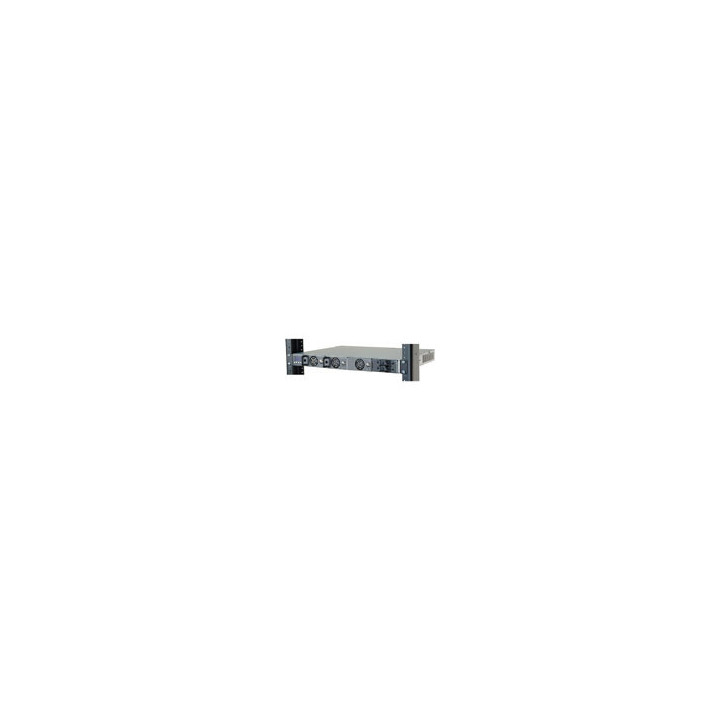

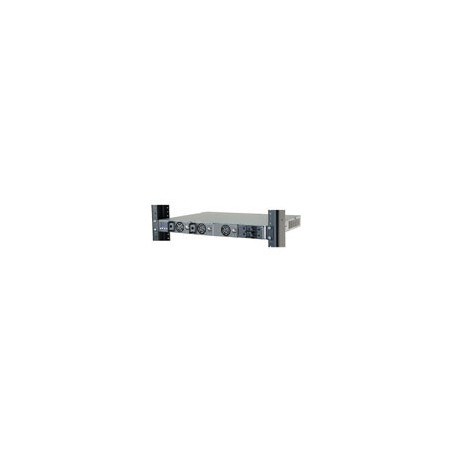

Hybrid Power Series Intelligent 1U Power Shelf with Dual-Breaker Battery Management Module and 24VDC 700W DC Converter Module (-

HYBRID POWER SERIES - 48 and 24 Volt DC Power Systems with integrated 12 or 24 Volt DC Converter Output

Two DC Output Voltages, Advanced Battery Management Features, Standard TCP/IP Monitoring and Control, 1400 Watt Total Output Power in a Compact 1RU Package.

Features:

· One or two hot swappable 48 or 24 volt primary DC output power modules

· 700 watt 12 or 24 volt integrated DC output converter

· 90 to 93% efficiency

· -30 C to +60 C operating temperature range

· TCP/IP Ethernet is standard on every model - provides complete and easy-to-use remote monitoring and control of the power system using built-in web server and graphical user interface or SNMP

· Battery Backup with 150A LVD and adjustable disconnect and reconnect voltage setpoints

· Single or Dual 100A battery disconnect breakers

· User Adjustable output voltages and battery charge current limit

· Advanced Battery Management features:

- Battery state of charge and charge current reporting

- Estimated run-time remaining

- Battery discharge testing

- Temperature compensated charging

· Digital and Analog inputs for temperature and site sensors

· Full range of certifications including CSA/UL, FCC Class B, CE, ROHS

Many wireless communications sites require different DC voltages to power a range of devices, whether 48, 24 or 12 volts DC. This often means installing multiple power supplies or DC converters which may not always be feasible given limited rack space or budgets.

The ICT Hybrid Power Series is designed to meet this need. It combines a 48 or 24 volt DC power system with a factory installed 12 or 24 volt DC converter module to provide a 1400 watt maximum power flexible hybrid DC solution for wireless network sites. The Hybrid Power Series accepts one or two hot swappable 48 or 24 volt, 700 watt DC Power Modules. The integrated DC converter provides up to 700 watts of 12 or 24 volts DC output through a separate output bus bar.

Ethernet-based communications and control is standard on every model. System and battery monitoring are provided through a secure web-based server or SNMP. Outputs can be turned off and on, and various parameters can be controlled and managed remotely.

The ICT Hybrid Power Series is designed, manufactured and supported in North America to meet the need for wireless communications, broadband and other demanding DC power applications.
