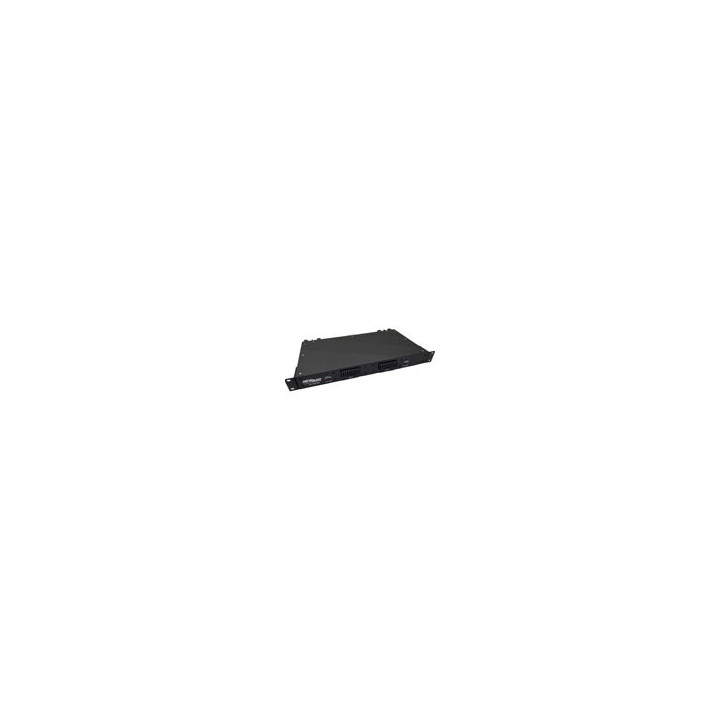

GMT Fuse Rack Mount Distribution Panel, Dual Bus 100 Amps Max, Up to 10 Fuses per bus. Sale price while supplies last

FDP-1010-48N - Rack Mount GMT Fuse Panel

DP-20GMT Series Fuse Panel provides two green LEDs, and each one indicates power supply status for a bank of ten load circuits. When any fuse fails, a red LED is turned on to indicate the condition and allow technicians to quickly find the panel with the failed fuse. Form C relay contacts, which are isolated from the frame and power circuits, indicate when there is a fuse failure by providing normally open and normally closed contacts to activate remote alarm or monitoring systems. These contacts are available via a rear-panel barrier strip.

Fuses and LED status indicators are on the front of the unit, while input, output, and alarm connections are on the rear.

The FDP-1010-48N Fuse Panel is a rack mount (1U) 100 Amp -48 VDC power distribution panel that provides up to 10 load circuits via two buses protected by individual GMT series fuses (fuses not included) in the negative lead for positive ground installations. Each circuit can be fused up to 15 Amps, with a total 10-circuit load of 100 Amps maximum. Heavy duty DC input connectors provide strong ¼ inch studs to accept up to 100 amps at -48 VDC from a single power supply. This product is designed for -48 VDC positive ground systems, however, all inputs and outputs are isolated from the frame.

* Dual Bus 100 Amps Max

* Up to 10 Fuses per bus

* Red / Green LED light that indicate power and

* alarm activity

* Form C Relay contacts are isolated for remote

* Fuse fail indication

* 15 Amps max per position on output screws

* Requires GMT visual spring indicating fuses (not included)
