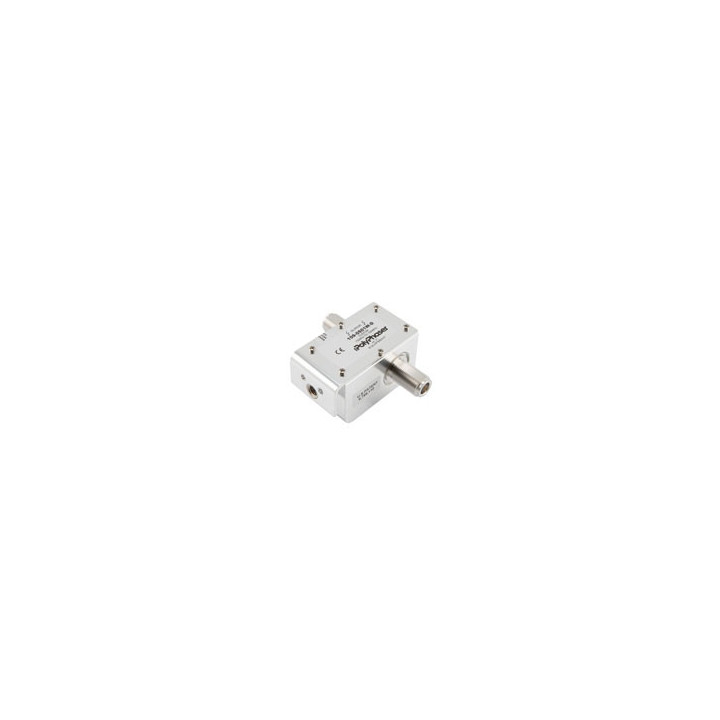

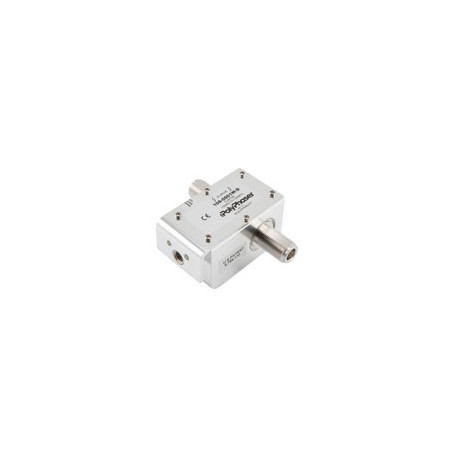

PolyPhaser Bulkhead Coaxial RF Surge Protector, 700-1000MHz, Telemetry, DC Pass, 15V, IP67, 20kA, Hybrid, Flange Mount, N-Female

N-Type Coaxial RF Surge Protectors, 700MHz - 1GHz, 750W, IP67, 15 V Max., 500uJ, 20kA, Hybrid

PolyPhaser coaxial RF surge protectors (also known as lightning surge protector, lightning surge arrestor or suppressor) help protect your equipment from electromagnetic pulse (EMP) or power surges that are commonly caused by lightning or other strong electrical changes. Our radio frequency coaxial surge protector product is commonly used for radio and antenna installations where part or all system equipment is outdoors to protect sensitive equipment and is designed to pass 700 MHz to 1 GHz while suppressing DC surge.

While this radio frequency lightning surge suppressor operates in a range of frequencies from 700MHz to 1GHz, it is supporting a power handling maximum of 750 Watts. RF surge protector 109-0501W-A/D from PolyPhaser incorporates hybrid technology to provide protection for equipment at up to the max. power of 750W.Our coax surge protection device for RF is manufactured with a type N connection in and a type N out.
