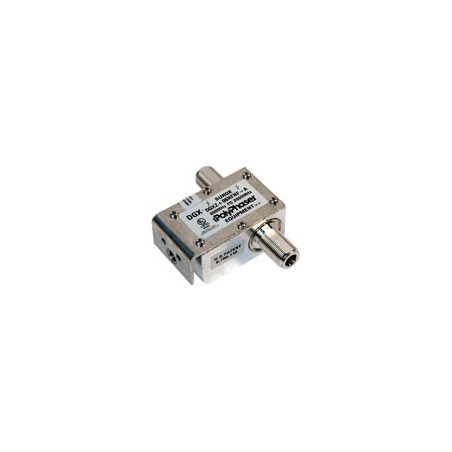

PolyPhaser Hybrid +15VDC Pass RF Lightning Protector, DC to 50MHz, TNC-Female to TNC-Female

GX Series

The GX Series of RF DC pass surge arrestors are engineered for RF coaxial applications where DC current is needed on the coaxial line. The GX Series can be used on GPS and other active antenna systems that operate in the range from DC to 2700 MHz.

FEATURES

* Frequency ranges from DC to 2.7 GHz

* Patented hybrid surge protection

* Repeatable RF performance after surge

* Flexible bulkhead and bracket mounting options

* Weatherproof when installed

* 7/16? DIN, N-Type and TNC

STANDARDS

* Weatherproof: IEC 60529 IP 67

* Bellcore TA-NWT-000487

* Procedure 4.11, Wind Driven (120 MPH)

* CE and RoHS

PATENTED LIGHTNING ARRESTOR TECHNOLOGY

protection technology. This hybrid circuit integrates the quick response of a silicon avalanche suppression diode (SASD) with the surge handling capabilities of a MOV and gas tube. The GX technology has been field tested for more than a decade and has been used in critical RF networks world-wide.
