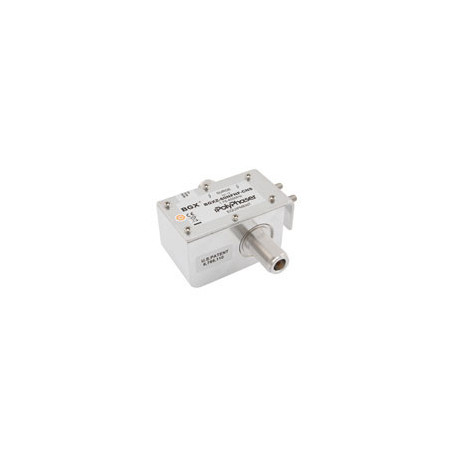

PolyPhaser Coaxial RF Surge Protector, 40-400MHz, 100W, IP67, 60V Max, 2.5mJ, 20kA, Hybrid, Bracket Down, Stud, N-Female

N-F/F Coaxial RF Surge Protector, 40-400MHz, 100W, IP67, 60V Max, 2.5mJ, 20kA, Hybrid, Bracket Down, Stud

PolyPhaser coaxial RF surge protector (also known as lightning surge protector, lightning surge arrestor or suppressor) BGXZ-60NFNF-CNS helps protect your equipment from electromagnetic pulse (EMP) or power surges that are commonly caused by lightning or other strong electrical changes. Our radio frequency coaxial surge protector product is commonly used for radio and antenna installations where part or all system equipment is outdoors to protect sensitive equipment and is designed to pass 40 MHz to 400 MHz while suppressing DC surge.

While this radio frequency lightning surge suppressor operates in a range of frequencies from 40MHz to 400MHz, it is supporting a power handling maximum of 100 Watts. RF surge protector BGXZ-60NFNF-CNS from PolyPhaser incorporates hybrid technology to provide protection for equipment at up to the max. power of 100W. Our coax surge protection device for RF is manufactured with a type N connection in and a N type out.

BGXZ-60NFNF-CNS is constructed with a female gender for the input and female for the output. This F/F type N to N type surge protecting component for RF has a let-through energy of 2.5mJ. The coaxial lightning surge arrestor is IP rated, it has an IP67 rating.
