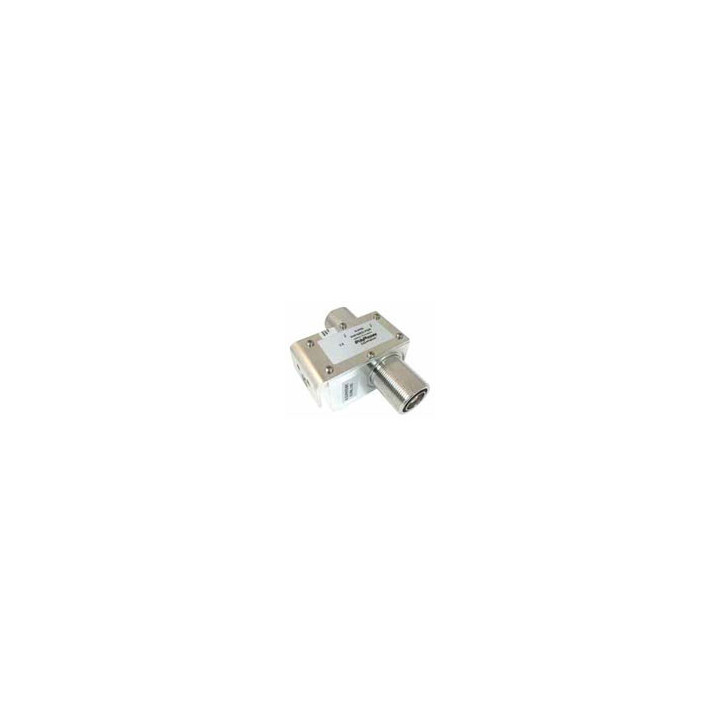

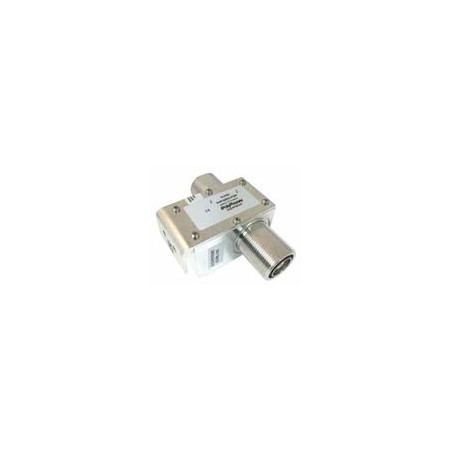

PolyPhaser DC Block Coaxial RF Surge Protector, 100-520MHz, 750W, 20kA, Low-PIM, 4.3-10 M/F, Bracket Down

VHF50 Series

The VHF50 Series provides DC block surge protection for LMR and remote monitor applications requiring frequencies between 100 MHz and 512 MHz. Industry leading PIM rated products are also available.

FEATURES

* Wide-frequency ranges from 100 MHz to 512 MHz

* 7/16? DIN and N-Type connectors available

* Ultra low PIM rated options

* Repeatable RF performance after surge

* Flexible bulkhead and bracket mounting capabilities

* Weatherproof when installed

STANDARDS

* Weatherproof: IEC 60529 IP 67

* Bellcore TA-NWT-000487

* Procedure 4.11, Wind Driven (120 MPH)

* CE and RoHS Compliant

PATENTED LIGHTNING ARRESTOR TECHNOLOGY

The VHF50 product family is based on PolyPhaser's patented filter surge protection technology. This circuit acts as a high-band filter, shunting surge energy to ground. The VHF50 technology has been approved by major OEMs for use with critical applications such as emergency response and public safety communications.
