TT 1101-959 PoE Surge Protection

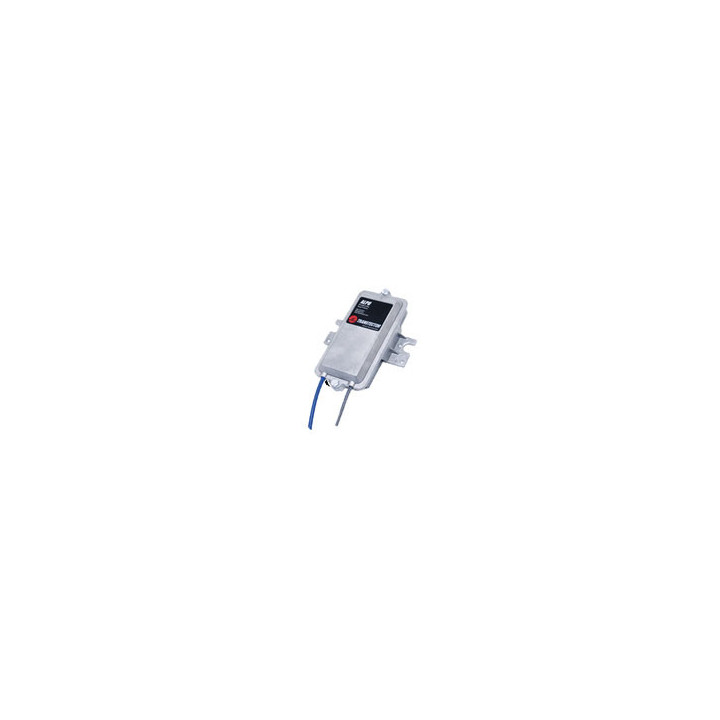

The Transtector ALPU-PTP-M is ideal for protecting high speed 10/1000BT communications networks. The protection circuits utilize silicon avalanche diode technology. The protection circuit board is housed in an aluminum enclosure. The enclosure is an outdoor qualified NEMA 3R type with versatile mounting flanges. The ALPU-PTP-M features RJ45 protection circuits for gigabit Ethernet data (pins 1,2 & 3,6 & 4,5 & 7,8). The unit is intended to be wall mounted with an optional bracket available to allow a wide range of pole mount configurations. A dedicated ground point on the housing must be bonded to the nearest grounding system (or Master Ground bar) for proper surge protection functionality. The system wiring is installed with RJ-45 type connectors that can install directly into the chassis without having to cut or splice or route through awkward strain relief holes. The enclosure includes a built in cable retention feature for improved cable management using screw down clamps. In the unlikely event of surge protection self sacrifice, the protection elements will fail short to disrupt communication.

ALPU-PTP-M protection kit (1101-971) is deal for 1000 Base T Gigabit Ethernet protection for Point to Point wireless solutions. The kit contains two ALPU protection units (1101-959) as well as the necessary mounting hardwire and cable assemblies to provide complete protection from lightning generated transients.
