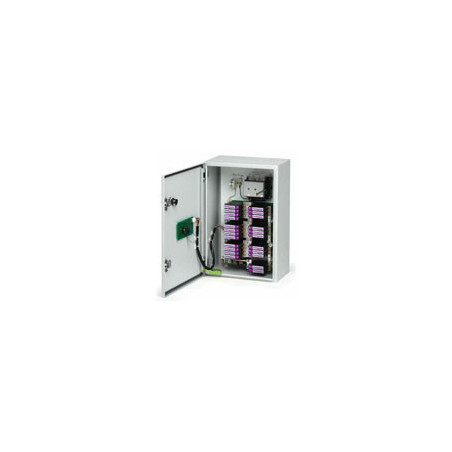

LEA PV 200 120/208-3Y-1

MODULAR SURGE PROTECTION DEVICES: PV PLUS SERIES

AC Surge Protection

PowerVantage (PV Plus) is a per mode modular surge suppression unit with all modes of protection listed to UL 1449 4th Edition and designed with robust surge capacity for long life. PV Plus is engineered for easy installation and serviceability to eliminate downtime and protect your critical equipment.

FEATURES

* Thermally Protected MOV - allows maximum surge capacity, repetitive capability, and performance while maintaining safety requirements

* All Mode Protection - L-N, L-G, N-G & L-L

* Linear Sharing - reduces stress to extend product life

* Internal Protection Indicator Lights of Modules - redundant monitoring to identify damaged modules for easy servicing

* Modular Per Mode - serviceable modules per mode

* Surge Counter - counts transients the unit suppresses

* Indication Lights - shows loss of power and external protection

* Dry Contacts - Form C contacts for remote monitoring (NO & NC)

* Alarm with Disable Switch - audible indication

* Warranty - 10 years
