• PoE Splitter / Voltage Converter

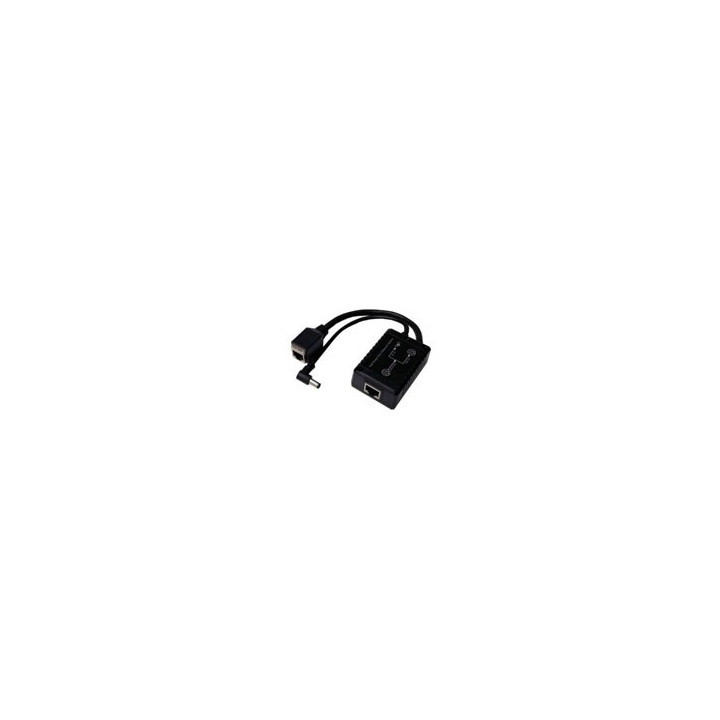

PoE Splitter / Voltage Converter, 48VDC 802.3af PoE input and output, 24VDC 0.5A output, 12W, 5.5x2.1 connector

Manufacturer Tycon Systems
Part Number POE-MSPLT-4824P-F
Out of stock

Quick look

Product Types: POE
$58.95
Pricing may be subject to tariffs.
This product is currently unavailable. Please call +1 888 946 6266 to check availability.

1-888-WINNCOM / sales@winncom.com

Available Monday through Friday, from 8:00 AM to 5:00 PM EST.

POE-MSPLT-48xxP-F - PoE Splitter / Voltage Converter


The POE-MSPLT-48xxP-F is a unique splitter with dual outputs. It accepts 802.3af or 802.3at PoE and provides 48V PoE and 48V or 24V or 12VDC outputs concurrently so two separate devices can be powered. The DC output is provided on a standard 5.5mm/2.1-2.5mm barrel connector and the Data/PoE output is provided on standard RJ45 network connector, each on a 6'' cable. The DC connector is compatible with Tycon passive PoE injectors like POE-INJ-1000-S for ease of integration. In addition to being compatible with 10/100MB Ethernet speeds, inputs and outputs are isolated and the devices include protections for short circuit and overload.


Features


* Very Compact Size


* Dual Output: 48V Passive PoE and 48V, 24V or 12VDC Output


* Converts an Active PoE Input to a DC output


* Output Power Up To 15W


* Short Circuit, Over Current Protection


Data Sheet

Product Types POE
