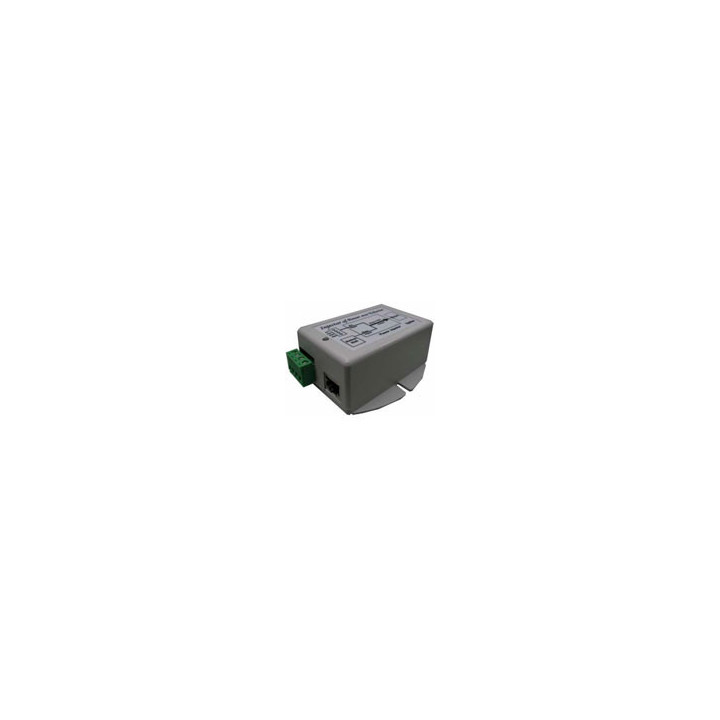

Tycon Gigabit,36-72VDC In,24W DCDC Conv.

TP-DCDC G - Gigabit DC to DC Converter

The TP-DCDC Gigabit Series of DC to DC converters offered by Tycon Power® are a low cost and high efficiency solution for those requiring IEEE802.3af or Passive Power over Ethernet from a 12VDC or 24VDC or 48VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5 Ethernet cable. The output voltage is regulated and protected. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. A metal enclosure model is available for industrial applications.

They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 24W.

Features

* Input Voltage 12VDC or 24VDC or 48VDC

* IEEE 802.3af Compliant or Passive PoE Output

* Dual Inputs for Connecting 2 Power Sources

* Integrated 10/100/1000MB PoE Inserter

* High Power up to 24W

* Low Self Consumption Power

* Short Circuit, Over Current and Reverse/Over Voltage Protect

* High Temperature Operation

* Compact Size - Maximize Available Space
