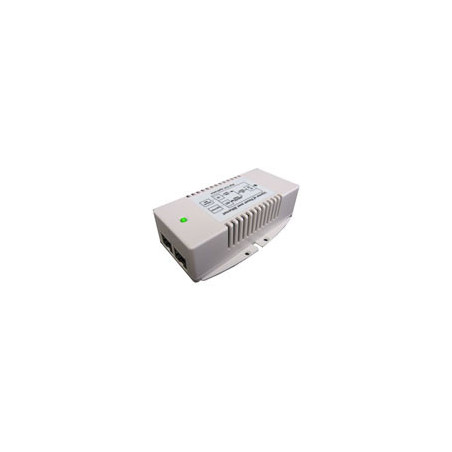

56V 60W 4 Pair High Power Gigabit Passive PoE Power Inserter, US Power Cord

TP-POE-HP-56G-FBN - PoE Power Source

The TP-POE-HP-56G-FBN Power over Ethernet Power Source offered by Tycon Power® is a quality midspan power source for years of reliable operation even in the toughest conditions. They accept data-in to a shielded RJ45 Jack and provide surge protected data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on all 8 Ethernet pins. The Ethernet spec supports distances up to 100m (328 feet).

The units are autoranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply regulated DC Voltage at the output. They have various protections for surge, short circuit, overload and overvoltage. The TP-POE-HP-56G-FBN has an output power of 60watts. The output voltage is 56VDC with load regulation within 5%. The units can be DIN rail mounted.

Features

* Remotely Power Equipment thru CAT5 Cable up to 100m

* Built in Ethernet and AC Surge Protection

* Autoranging Switching Power Supply

* Short Circuit, Over Current and Over Voltage Protection

* High Power to 60W PoE Output

* 10/100/1000Mb Gigabit Compatible

* High Temperature Operation to 60C

* DIN Rail Mountable
