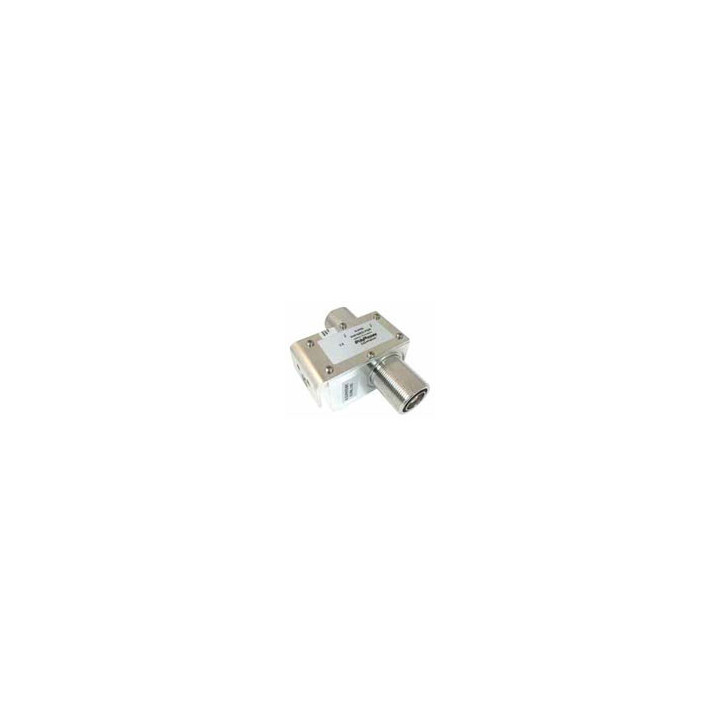

• PolyPhaser DC Block Coaxial RF Surge Protector

PolyPhaser DC Block Coaxial RF Surge Protector, 100-520MHz, 750W, 20kA, Low-PIM, 4.3-10 M/F, Bracket Down

Brand PolyPhaser
Part Number VHF50B43-MA-PGR-BD

Quick look

Product Types: Lightning Arrestors
$249.99
Pricing may be subject to tariffs.

1-888-WINNCOM / sales@winncom.com

Get your business the equipment it needs with LEAF.

VHF50 Series


The VHF50 Series provides DC block surge protection for LMR and remote monitor applications requiring frequencies between 100 MHz and 512 MHz. Industry leading PIM rated products are also available.


FEATURES


* Wide-frequency ranges from 100 MHz to 512 MHz


* 7/16? DIN and N-Type connectors available


* Ultra low PIM rated options


* Repeatable RF performance after surge


* Flexible bulkhead and bracket mounting capabilities


* Weatherproof when installed


STANDARDS


* Weatherproof: IEC 60529 IP 67


* Bellcore TA-NWT-000487


* Procedure 4.11, Wind Driven (120 MPH)


* CE and RoHS Compliant


PATENTED LIGHTNING ARRESTOR TECHNOLOGY


The VHF50 product family is based on PolyPhaser's patented filter surge protection technology. This circuit acts as a high-band filter, shunting surge energy to ground. The VHF50 technology has been approved by major OEMs for use with critical applications such as emergency response and public safety communications.


Data Sheet

Product Types Lightning Arrestors
