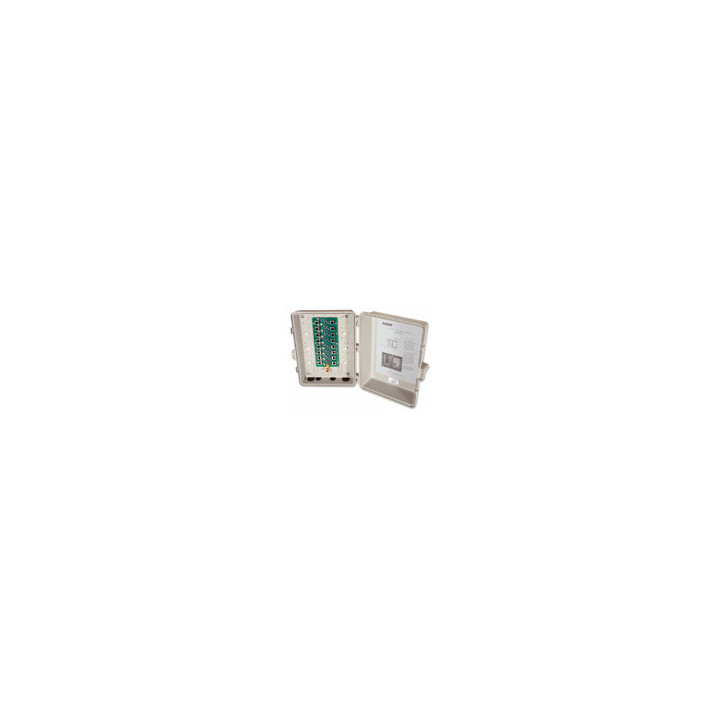

• Transtector ALPU-CMM3 8 Port CCMM Surge Supressor Unit with

Transtector ALPU-CMM3 8 Port CCMM Surge Supressor Unit with 8 Input/Output 24VDC, PoE TVSS Protection for Cambium CMM

Brand Transtector
Part Number 1101-805

Quick look

Product Types: Lightning Arrestors
$1,130.00
Pricing may be subject to tariffs.

1-888-WINNCOM / sales@winncom.com

Get your business the equipment it needs with LEAF.

Specifications:


ELECTRICAL SERVICE


Transfer Rate


CAT 5, 10/100Mb/s


Maximum Continuous Operating Voltage


30VDC for POE circuits, 12VDC for Ethernet


Connector Style


RJ-45, Metal Shielded Jack


Protected RJ-45 Pins


Lines 1-2; 3-6; 4,5-7,8; All pins to GND


ELECTRICAL PERFORMANCE


Suppressor Response Time (Max.)


5ns


Turn-on Voltage


Ethernet (Pins 1-2, 3-6)


15V @ 5ma


DC POE (Pins 4,5 – DC- & Pins 7,8 DC+)


30V @ 5ma


Maximum Voltage Protection Level IEEE and GR-1089, 10/1000µs Long Wave


Ethernet (Pins 1-2, 3-6)


25Vp @ 100A 10/1000µs


DC POE (Pins 4,5 – DC- & Pins 7,8 DC+)


50Vp @ 100A 10/1000µs


MECHANICAL


Enclosure Description: The suppressor is housed in a sealed PVC enclosure and mounted to a powder coated metal panel with overall dimensions of 17” tall (43cm), 11” wide (28cm) and 6” deep (15cm). The door opens from the right side and requires a full 12” clearance to open properly. The PVC enclosure has a UL 1863 Flame Retardant rating


Weight


7 lb (3.2kg)


ENVIRONMENTAL


Operating Temperature


20°C to +65°C


Storage Temperature


20°C to +65°C


Relative Humidity


90%

Data Sheet
