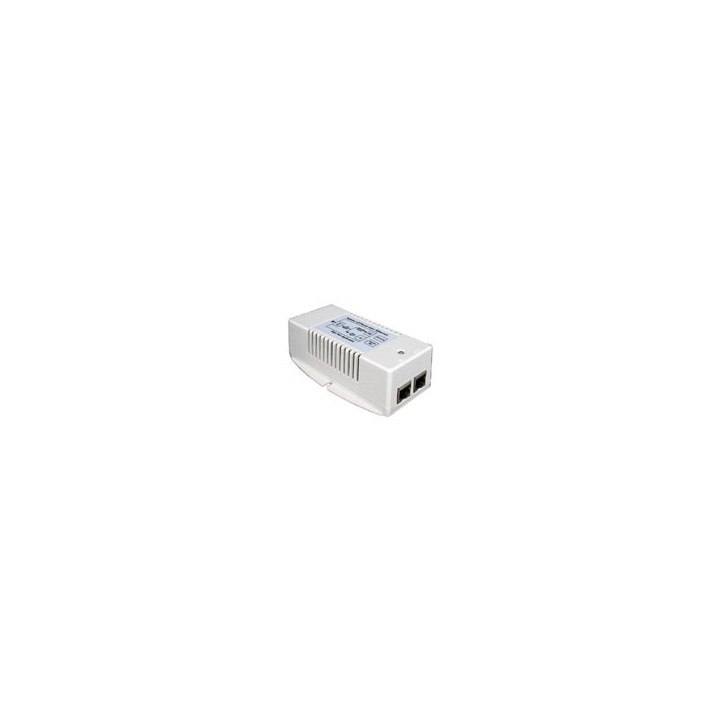

PoE Power Supply/Inserter, Input 90-264VAC, 24VDC output voltage at 2A, 50W

POE-HP-XXi - Power-Over-Ethernet Power Supply/Inserter

``CARRIER CLASS'' POWER OVER ETHERNET SYSTEM

The POE-HP-xxi is an advanced 802.3af compliant power supply/inserter. The power supply is autoranging on the input and has a regulated voltage output and it has overload and short circuit protection. The POE-HP-xxi is not a proprietary unit. It will function with any equipment which is compliant with the IEEE 802.3af POE standards. The POE-HP-xxi does not include the intelligent detection algorithms detailed in the 802.3af spec which means that the POE-HP-xxi will power up any device connected to it. The power is supplied on ethernet pins 4/5 (V+) and 7/8 (V-). The POE-HP-xxi comes complete with a standard North American 115 VAC power cord. International cords are available upon request.

Using power over Ethernet to power remote devices has several advantages including:

* The power supply can be centrally located where it can be attached to an uninterruptible power supply.

* The user has the ability to easily power on and reset the attached equipment from a remote location.

* There is no need to run additional power cabling to the device as power can be supplied over the CAT5 ethernet cable.

* The power supply can power a remote device up to 300 feet away, limited only by the Ethernet standard.

FEATURES

* High power (50W) output

* Auto ranging power supply / inserter

* Overload and short circuit protection

* Minimum cross talk and insertion loss

* Advanced switching technology - runs cool

* Complies with IEEE 802.3af POE standard

MARKETS

* Remote routers, access points, and bridges

* Remote networking equipment

* Remote camera systems

* 400 MHz to 10 GHz systems

* SOHO equipment

* IP phone systems

* WiMAX
