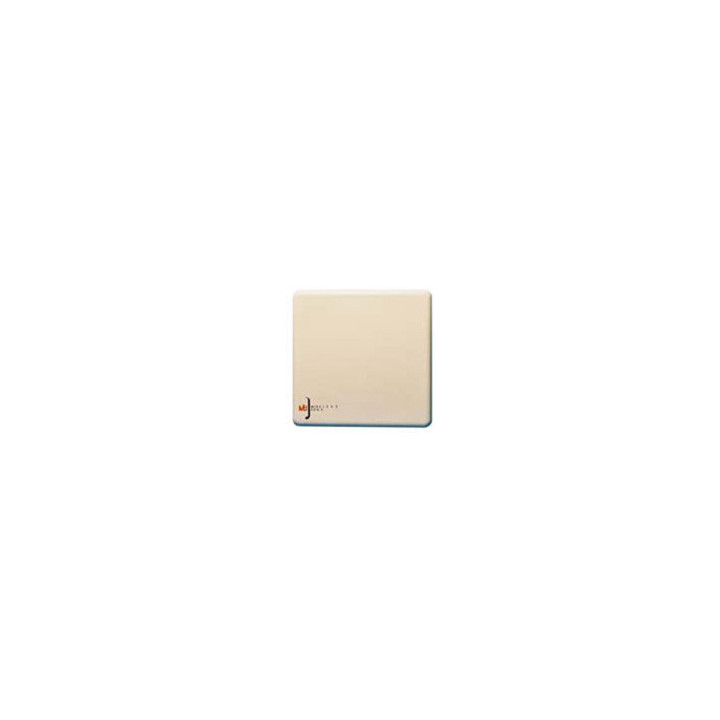

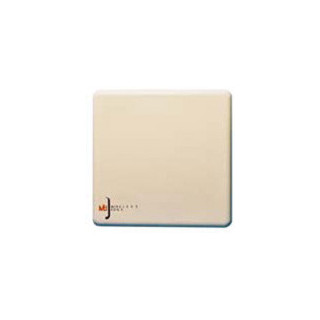

• MTI CPE Panel Antenna, 902-928MHz

MTI CPE Panel Antenna, 902-928MHz, Gain: 10 dBi, Antenna for enclosure, 1'

Brand MTI Wireless Edge
Part Number MT-263003/S/E

Quick look

Product Features: Single Polarity
Antenna Types: Directional Panel
Frequencies: 800-980 MHz

1-888-WINNCOM / sales@winncom.com

Get your business the equipment it needs with LEAF.

Features:


High-Quality Low-Cost
Lightweight antenna with easy installation
Low profile
Environmental friendly
Various polarities
Various configurations such as standalone, integrated or internal component
Narrow and broad band
Meets ETSI electrical and environmental requirements
Very aesthetic look

Specifications:


Electrical


Frequency Band, GHz


902-928

Gain, dBi (Min)


10

Polarity


Linear V/H

3 dB BEAMWIDTH (AZIMUTH & ELEVATION)


50°(typ)

Sidelobe Level, dB (Max)


-20

Cross Polarization Level, dB (Max)


-25

Front to Back Ratio, dB (Max)


-27

VSWR


1.5:1

Input Impedance, Ohms


50

Maximum Input Power, Watt


6

Lighting Protection


DC Grounded

Mechanical


Dimensions, mm


305 X 305 X 25


Weight, Kg (Max)


1.5

Base Plate


Aluminum with chemical conversion coating


Mounting kit


Requires Environmental Enclosures


Radome


Plastic

Environmental


Temperature Range


-45 to +70 degree

Humidity


95% per ETSI EN300

Ice and Snow


25mm Radial

Wind Speed


160 Kmph Operation/220 Kmph Survival

Data Sheet

Product Features Single Polarity
Antenna Types Directional Panel
Frequencies 800-980 MHz
Antenna Sizes 1 foot and smaller
