• 5GHz 17.6 dBi 8-Port Dual Polarity 65 Degree Sector Antenna

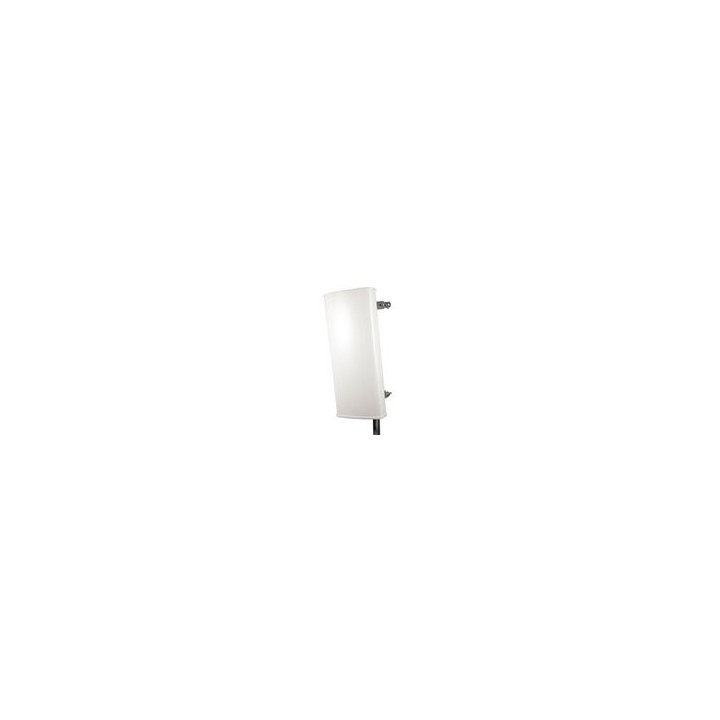

5GHz 17.6 dBi 8-Port Dual Polarity 65 Degree Sector Antenna for Mimosa A5c

Brand KP Performance Antennas
Part Number KP-5HVX8-65

Quick look

Product Features: Dual Polarity | MIMO Antennas
Antenna Types: Sectorized
Antenna Sector Sizes: 60 degree
$569.00
Pricing may be subject to tariffs.

1-888-WINNCOM / sales@winncom.com

Get your business the equipment it needs with LEAF.

The KP-5HVX8-65 8-Port 65° 5 GHz Sector Antenna features dual-horizontal/vertical-polarization with a 65° azimuth beamwidth and eight ports, all within a single 34-inch radome. It delivers high gain over a wide bandwidth of 4.9 GHz to 6.4 GHz with up to 17.5 dBi gain at 5.9 GHz. This 8x8 MIMO sector antenna is supplied with a robust, universal adjustable bracket with wide U-bolts for mounting on poles or tower legs up to 3.5-inches in diameter.


This innovative sector antenna from KP Performance (KP-5HVX8-65) has eight 5 GHz ports with collocated patterns all facing in the same direction. Connecting two four-port radios provides additional redundancy and can be leveraged to increase capacity by using separate channels on each radio. Pairing the sector with two of Mimosa's A5C radios (4 ports each) provides an additional +2 dBi beamforming gain, which allows for extremely long shots with Mimosa's high client speeds. Four of these antennas mounted to a tower provides complete 360° coverage which can be increased to six antennas for more dense applications.


Note: This 8-port sector antenna is specially designed to fit 2x Mimosa A5c radios (4-ports each radio), but will work with other 4-port 5 GHz radios.


Data Sheet

Product Features Dual Polarity | MIMO Antennas
Antenna Types Sectorized
Antenna Sector Sizes 60 degree
Frequencies 4.9-5.8 GHz | 5.2 GHz | 5.4 GHz | 5.8 GHz | 6 GHz
