• ProLine 3.5-4.2GHz 65 Degree + 4.9-6.4GHz 90 Degree Dual

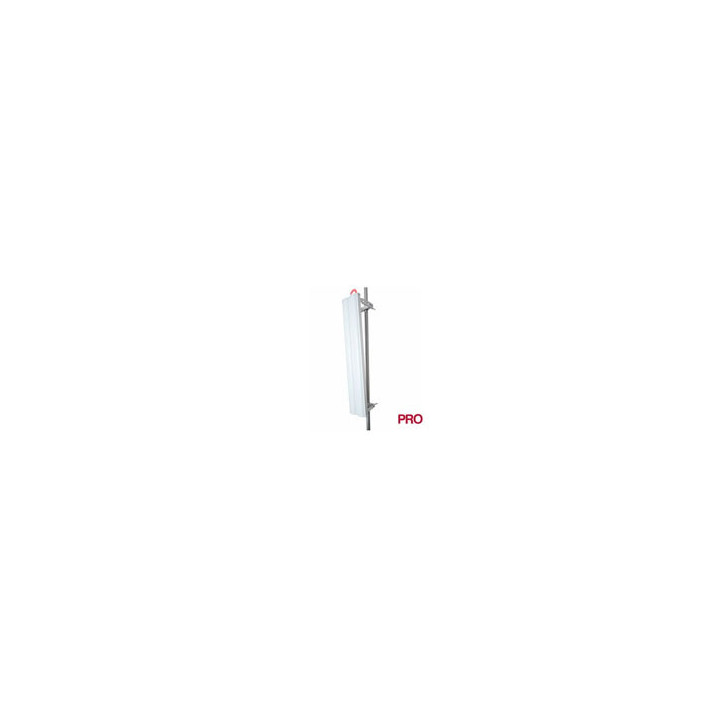

ProLine 3.5-4.2GHz 65 Degree + 4.9-6.4GHz 90 Degree Dual Slant Dual Band 8-Port Sector Antenna (Two Sectors in One Shell) with 0

Brand KP Performance Antennas
Part Number KPP-3S65-5S90-X8-0DT

Quick look

Product Features: Dual Polarity | Dual-Band Antennas | MIMO Antennas
Antenna Types: Sectorized
Antenna Sector Sizes: 60 degree | 90 degree
$769.00
Pricing may be subject to tariffs.

1-888-WINNCOM / sales@winncom.com

Get your business the equipment it needs with LEAF.

The KPP-3S65-5S90-X8-0DT is a 65 Degree and 90 Degree dual band sector antenna operating from 3.5 GHz to 4.2 GHz and 4.9 GHz to 6.4 GHz. This 4x4 MIMO antenna features gain performance of 17.8 dBi and 17 dBi respectively, 8 ports and ±45° slant polarization with excellent front-to-back of 35 dB.


Features


*Stable performance over wide bandwidths with flat gain


*4x4 MIMO capacity (4x4 MIMO in each frequency band)


*Superior port isolation, cross polarization discrimination, gain, VSWR, and front-to-back


*Ultra-wide bandwidths for world-wide markets


*Upper side lobe suppression reduces inter-cell interference


*Null fill improves coverage near the tower


*Side-lobe mitigation and improved front-to-back performance help reject interference


*Integrated hoisting hook for added safety and convenient installation


*Heavy-duty aluminum brackets with powder coated steel hardware


*Universal radio bracket with quick-release slot/clip design is compatible with many AP radios


*Mounts to any size mast from 0.75" to 4.5"


Data Sheet

Product Features Dual Polarity | Dual-Band Antennas | MIMO Antennas
Antenna Types Sectorized
Antenna Sector Sizes 60 degree | 90 degree
Frequencies 3.3-3.8 GHz | 3.5 GHz | 3.65 GHz | 4.9-5.8 GHz | 5.2 GHz | 5.4 GHz | 5.8 GHz | 6 GHz
