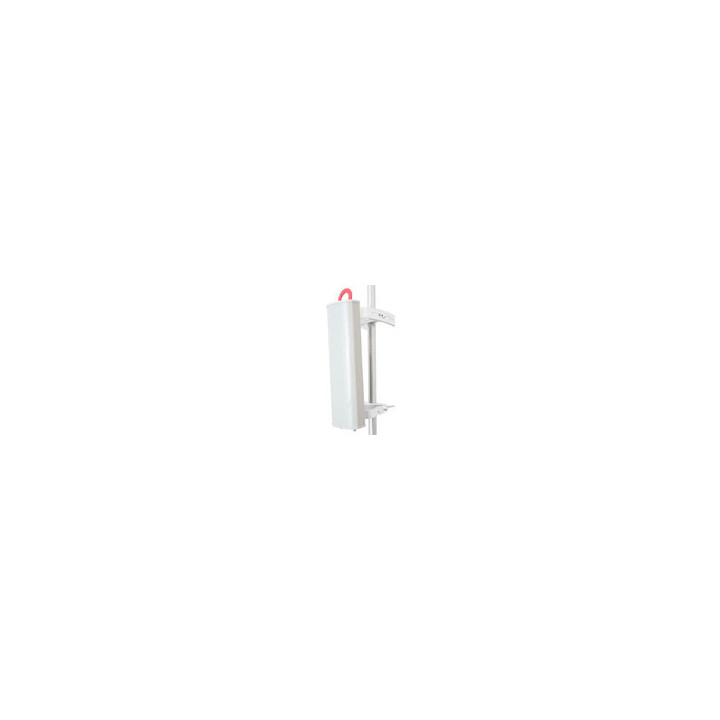

• ProLine 4.9GHz to 5.9GHz 45 Degree Dual Slant Sector Antenna

ProLine 4.9GHz to 5.9GHz 45 Degree Dual Slant Sector Antenna, 20.5 dBi, 2-Port

Brand KP Performance Antennas
Part Number KPP-5DP45S-45

Quick look

Product Features: Dual Polarity
Antenna Types: Sectorized
Antenna Sector Sizes: 45 degree
$412.99
Pricing may be subject to tariffs.

1-888-WINNCOM / sales@winncom.com

Get your business the equipment it needs with LEAF.

The KPP-5DP45S-45 is a 5 GHz ProLine Sector Antenna with a 3 dB beamwidth of 45°, high gain of 20.5 dBi, two ports with + / - 45 slant polarization, and operates over an ultra-wide bandwidth of 4.9 GHz to 5.9 GHz. The sector antenna has an aesthetically small footprint and delivers consistent gain in its coverage area.


This sector antenna offers side lobes suppression and a front to back over 40 dB while retaining a high gain that outperforms asymmetric horn antennas of the same 3dB azimuth beamwidth. The highly suppressed side lobes and superior front to back allows for channel (frequency) reuse and can reach high levels of spectral efficiency in the most challenging and noisy environments. The polarization is + / - 45 slant, making the sector compatible with many 4.9 GHz to 5.9 GHz single or dual polarization 2 x 2 MIMO radios.


The antenna comes with rugged powder-coated aluminum brackets and features an Integrated hoisting hook for added safety and convenient installation. The sector antenna features a heavy-duty UV-resistant ABS radome and anodized aluminum reflector for all-weather operation. This ProLine Sector antenna is packaged with a rugged universal radio bracket that is compatible with many popular Cambium, Ubiquiti, Mimosa, and Baicells radios and can be retrofitted for many more.


Data Sheet

Product Features Dual Polarity
Antenna Types Sectorized
Antenna Sector Sizes 45 degree
Frequencies 4.9-5.8 GHz | 5.2 GHz | 5.4 GHz | 5.8 GHz | 6 GHz
