TV White Space (TVWS) 470-698MHz 9 dBi Dual Polarity 65 Degree Flat Panel Antenna

Brand KP Performance Antennas
Part Number KP-TWDPFP9

Quick look

Product Features: Dual Polarity
Antenna Types: Directional Panel
Frequencies: 470-698 MHz
$147.99
Pricing may be subject to tariffs.

1-888-WINNCOM / sales@winncom.com

Get your business the equipment it needs with LEAF.

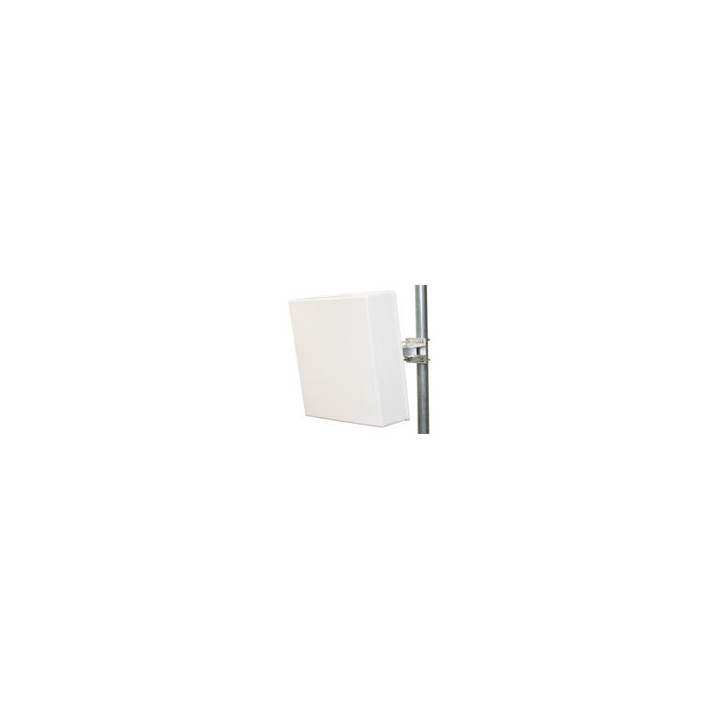

The KP Performance KP-TWDPFP9 covers the 470 MHz to 698 MHz frequency and is a 9 dBi dual pol directional flat panel antenna that offers high gain in a low-profile package. The KP-TWDPFP9 flat panel antenna comes equipped with die-cast aluminum brackets which afford +/- 15 degree up or down tilt adjustment and stainless steel hardware which assures a long service life. The antenna also includes a pole mount bracket and direct mounting option to the Redline Ellipse radio, as well as integral type-N Female connectors and is constructed of a UV resistant ABS plastic radome with an aluminum backplate.


Features


- Stable 9dBi gain from 470 to 698MHz in a small form factor


- Side lobe suppression and high front-to-back ratio


- Pole Mount for 1.2'' - 3.5'' diameters


- Direct Mount for Redline Ellipse RDL3000 XP Radio


- Rugged and Weatherproof construction


- Vertical/Horizontal polarization


- Supports 2 x 2 MIMO


- Cables NOT included


Data Sheet

Product Features Dual Polarity
Antenna Types Directional Panel
Frequencies 470-698 MHz
Antenna Sizes 1 foot and smaller
