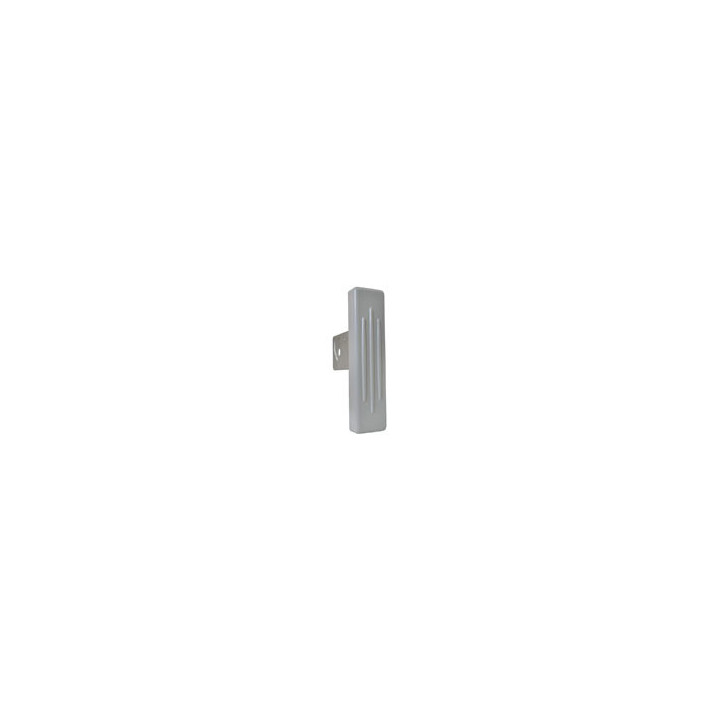

• 3.4-3.7GHz Sector Antenna

3.4-3.7GHz Sector Antenna, 120 degrees, 10 dBi, N-Female Connector, Mounting Hardware, SOI

Brand Mobile Mark
Part Number PS10-3500-120-GRY

Quick look

Product Features: Single Polarity | Vertical Polarization
Antenna Types: Sectorized
Frequencies: 3.3-3.8 GHz | 3.5 GHz | 3.65 GHz

1-888-WINNCOM / sales@winncom.com

Get your business the equipment it needs with LEAF.

Directional Sector Panels & Corner Reflector WiMAX 3.5 GHz Antennas


* High gain 10 - 12 dBi for point to point and multipoint applications


* Compact Sectors and Corner Reflectors can be used for access point or subscriber CPE


* Each model covers 3.4 - 3.7 GHz


* Standard pole mount hardware included, optional wall mount


The SCR directional corner reflectors use a half-wave configuration. The unique design provides high efficiency radiation without skewing the radiation pattern. The result is excellent bandwidth, gain and match over the frequency range.


The overall front face size of the SCR Corner Reflector is only 3'' high x 5.5'' wide (76 mm x 140 mm). The antenna element is protected in an ASA radome, the panels are white powder coated.


The PS Series sector/panel antennas are excellent for deploying point to multipoint applications. The panel antenna is broadband and uses the latest PCB technology. The PS Series housing is a very attractive light grey polystyrene UV resistant plastic.


Compact in size, 12.5'' H x 3'' W (32 cm x 7.6 cm), these panel antennas will be unobtrusive in any indoor or outdoor environment.


The PS Series Sector/Panel has an adjustable tilt pole mount bracket. An array of antennas can be field assembled to provide a complete cell-site. Custom jumper cable assemblies are available, including Times LMR-400 or similar.


Data Sheet

Product Features Single Polarity | Vertical Polarization
Antenna Types Sectorized
Frequencies 3.3-3.8 GHz | 3.5 GHz | 3.65 GHz
