• 2.3-2.6GHz Corner Reflector Antenna

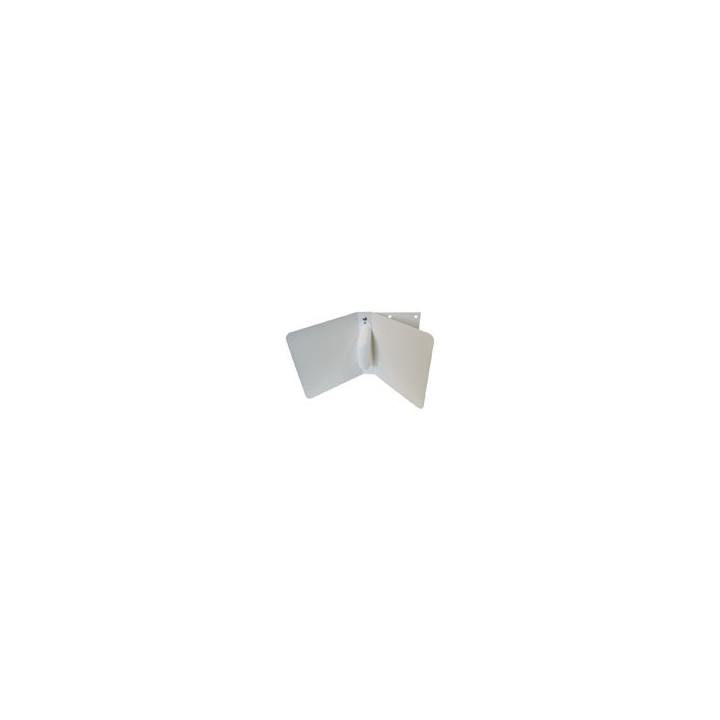

2.3-2.6GHz Corner Reflector Antenna, 12 dBi, N-Female Connector, Mounting Hardware, White, SOI

Brand Mobile Mark
Part Number SCR12-2400-WHT

Quick look

Product Features: Single Polarity | Vertical Polarization
Antenna Types: Sectorized
Frequencies: 2.3-2.7 GHz | 2.4 GHz | 2.5 GHz

1-888-WINNCOM / sales@winncom.com

Get your business the equipment it needs with LEAF.

Directional, Corner Reflector Wi-Fi 2.4 & 5 GHz


* Available in 9-12 dBi gain; efficient Front to Back ratio


* Efficient Point-to-Point coverage


* Small aperture; minimizes wind loading


* Split balun feed provides superior bandwidth & gain performance


* Heavy duty construction


Mobile Mark's Wi-Fi Corner Reflector antennas provide efficient point-to-point and point-to-multipoint coverage for remote monitoring, surveillance or mesh networks.


A SCR Series corner reflector antenna consists of a half-wave element, spaced approximately a quarter wave length in front of a reflector panel. The reflector panel serves to narrow both the horizontal and vertical pattern for increased gain and directivity.


This antenna design is able to provide excellent gain performance without sacrificing bandwidth. Cable Assemblies are available from Mobile Mark.


Data Sheet

Product Features Single Polarity | Vertical Polarization
Antenna Types Sectorized
Frequencies 2.3-2.7 GHz | 2.4 GHz | 2.5 GHz
