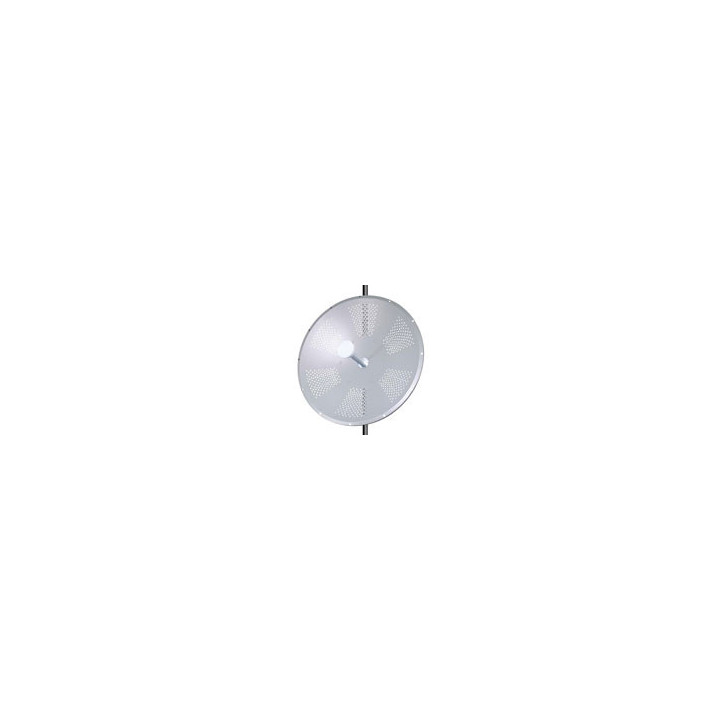

3-Foot 4.9-5.8GHz 34 dBi Dual Polarity Mesh Parabolic Dish Antenna with 2x N-Female Connectors

KPPA-5PDN-3 - 4.9-5.8 GHz 34 dBi Dual Polarity/X-Polarity MIMO Dish Antenna

The HyperLink model KPPA-5PDN-3 is a high performance broadband dual polarized solid dish antenna. Because of its' superb electrical performance and mechanical stability, the parabolic dish antenna can be used in a wide variety of high performance 4.9GHz and 5GHz range (5.1/5.3/5.4/5.8GHz) wireless applications. The wide band design of this antenna eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of wireless applications.

This antenna features 31 - 34 dBi of gain with a 3.3° horizontal beam-width and 3.3° vertical beam-width. The KPPA-5PDN-3 features an adjustable dual polarity feed horn system which allows the antenna to be configured for Dual Polarization (horizontal and vertical) or for X-Polarization (+45° and -45°). It is fed via two N-Female connectors, one for each polarized signals. This feature makes it ideal for MIMO/802.11n and polarization diversity systems.

The reflector dish of the KPPA-5PDN-3 is constructed from high quality aluminum which gives it superior strength. The dish is coated in a light gray UV-inhibited polymer for durability and aesthetics. Perforated holes in the dish helps minimize wind loading.

The KPPA-5PDN-3 is supplied with a tilt and swivel mast mount kit. This allows installation at various degrees of incline for easy alignment. It can be adjusted up or down from 0° to 30°.

Features

* Adjustable dual polarity feed horn system allows the antenna to be configured for Dual Polarization (horizontal and vertical) or for X-Polarization (+45° and -45°)

* Perforated aluminum reflector dish helps reduce wind loading and features a UV stable light gray polymer finish

* (2) N-Female connectors

* Includes tilt and swivel mast mount kit

* Optional radome cover kits available
