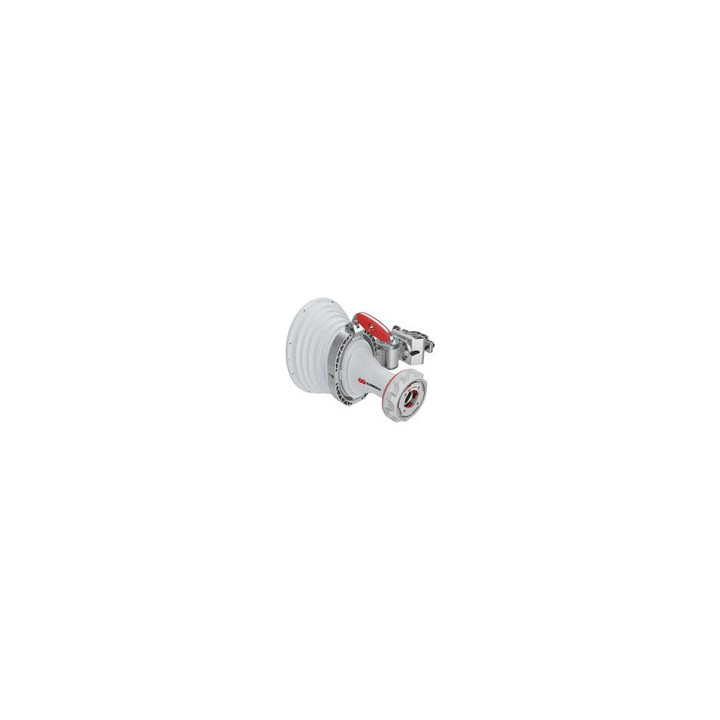

• RF Elements 5GHz Asymmetrical Horn Antenna with TwistPort

RF Elements 5GHz Asymmetrical Horn Antenna with TwistPort connector, 5180-6000MHz, 30 degrees Sector

Manufacturer RF Elements
Part Number AH2030-TP
Out of stock

Quick look

Product Features: Dual Polarity
Antenna Types: Sectorized
Antenna Sector Sizes: 45 degree | 60 degree
$299.00
Pricing may be subject to tariffs.
This product is currently unavailable. Please call +1 888 946 6266 to check availability.

1-888-WINNCOM / sales@winncom.com

Available Monday through Friday, from 8:00 AM to 5:00 PM EST.

30° Asymmetrical Beam Antenna


30° Asymmetrical Horn TP Antenna has high gain and zero side lobes, meaning very high beam efficiency. Its radiation pattern is wide in the azimuth and narrow in the elevation plane. The stability of gain, radiation pattern, and resulting coverage is excellent across the whole useful bandwidth. These properties and outstanding noise rejection favor 30° Asymmetrical Horn TP Antenna to be used in high customer density and co-location sites. TwistPort[tm] - our revolutionary patent-pending twist-and-lock waveguide port enables connectivity to a wide range of third-party radios using TwistPort[tm] Adaptors.


BeamSwitch[tm] feature enables mounting of the antenna with 90° rotation by swapping the position of the handle and the bracket. AH2030-TP thus can provide 20° azimuth and 30° elevation beamwidth option. The extruded aluminium ring improves the structural strength of the antenna attachment and makes the BeamSwitch[tm] flip easy and fast.


Data Sheet

Product Features Dual Polarity
Antenna Types Sectorized
Antenna Sector Sizes 45 degree | 60 degree
Frequencies 4.9-5.8 GHz | 5.2 GHz | 5.4 GHz | 5.8 GHz | 6 GHz
