• RF Elements 5GHz 4x4 Asymmetrical Horn Antenna

RF Elements 5GHz 4x4 Asymmetrical Horn Antenna, 5180-6000MHz, 90 degrees Sector, RSMA connectors, Mount for ePMP 3000 or 4500

Manufacturer RF Elements
Part Number AH90-4X4-SMA
Out of stock

Quick look

Product Features: Dual Polarity | MIMO Antennas
Antenna Types: Sectorized
Antenna Sector Sizes: 90 degree
$430.00
Pricing may be subject to tariffs.
This product is currently unavailable. Please call +1 888 946 6266 to check availability.

1-888-WINNCOM / sales@winncom.com

Available Monday through Friday, from 8:00 AM to 5:00 PM EST.

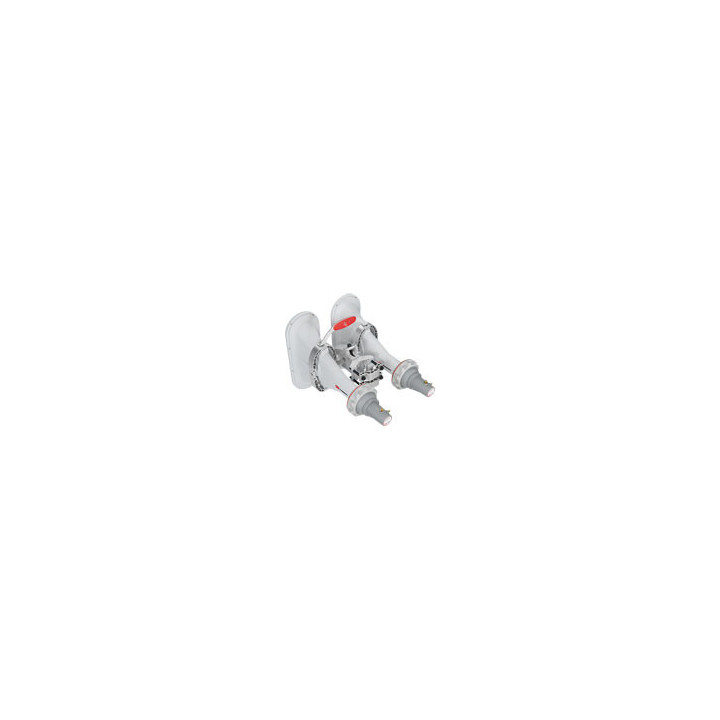

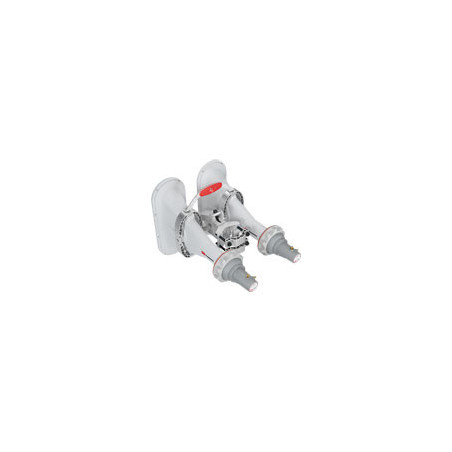

5 GHz 90° 4x4 Asymmetrical Horn Antenna


This 5 GHz 4x4 Asymmetrical Beam antenna is designed for excellent performance with MU-MIMO radios, such as ePMP 3000 or ePMP 4500. 4x4 Antenna Array is based on Award Winning 90° Asymmetrical Horn Antenna elements. Overall radiation pattern is 90° wide in the azimuth plane and 25° in elevation.


Outstanding noise rejection and precision of the radiation pattern throughout the bandwidth of operation favor the antenna for high-density access point clusters and densely co-located sites. Antenna features RP-SMA female connectors and integrated mount of ePMP 3000 4x4 radio.


Asymmetrical Horn antennas were awarded WISPA Product of the Year 2019, 2020 and 2021 Awards.


Data Sheet

Product Features Dual Polarity | MIMO Antennas
Antenna Types Sectorized
Antenna Sector Sizes 90 degree
Frequencies 4.9-5.8 GHz | 5.2 GHz | 5.4 GHz | 5.8 GHz | 6 GHz
