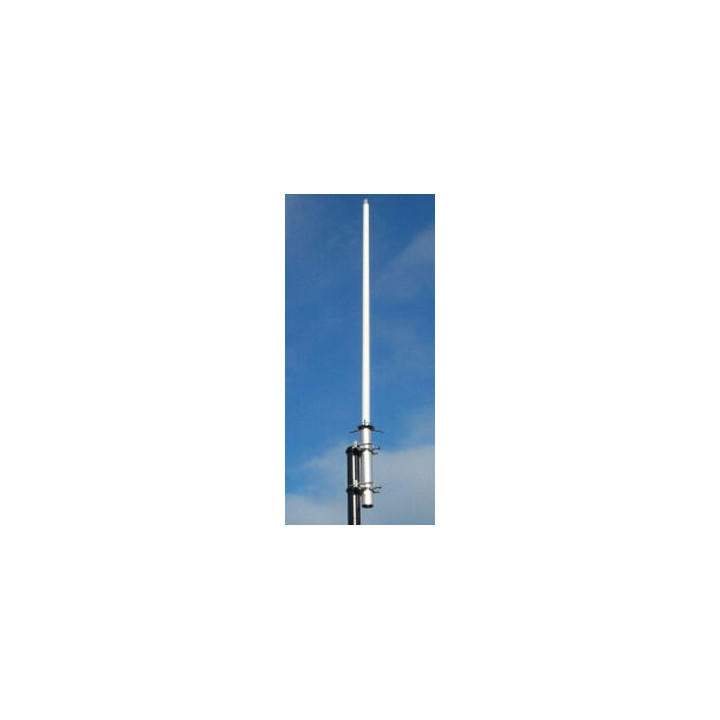

• NCG GP-24SR 10 dBi Omnidirectional Antenna

NCG GP-24SR 10 dBi Omnidirectional Antenna, 2.4-2.4835GHz ISM Band. Heavy duty, one-piece white fiberglass radome, Mounting on p

Manufacturer Winncom Technologies
Part Number GP-24SR
Out of stock

Quick look

Product Features: ETSI | FCC | Outdoor | Vertical Polarization
Antenna Types: Omnidirectional
Frequencies: 2.3-2.7 GHz | 2.4 GHz
$95.00
Pricing may be subject to tariffs.
This product is currently unavailable. Please call +1 888 946 6266 to check availability.

1-888-WINNCOM / sales@winncom.com

Available Monday through Friday, from 8:00 AM to 5:00 PM EST.



Antenna Performance



Frequency
2.400 - 2.500 GHz
Gain (dBi)
9.9
VSWR
less than 1.5:1
Polarization
Vertical
-3 dB Beamwidth E-plane

Cross polar rejection
more than 20 dB
Impedence (ohms)
50
Maximum Power Rating
100 Watts
Max Wind Survival
150 mph (241 km/h)
Wind Load
26.9 sq in (173.5 sq centimeters)
Height
45 in. (1143 mm)
Weight
1 lbs 14 oz. (0.85 Kg) - inc. brackets
RF Connector
N type female
Mounting
Stainless steel bracket set for Mast or Pole mounting

Vertical Radiation Pattern



Data Sheet

Product Features ETSI | FCC | Outdoor | Vertical Polarization
Antenna Types Omnidirectional
Frequencies 2.3-2.7 GHz | 2.4 GHz
