• 902-928MHz, LH Circular Polarization RFID UHF Near Field

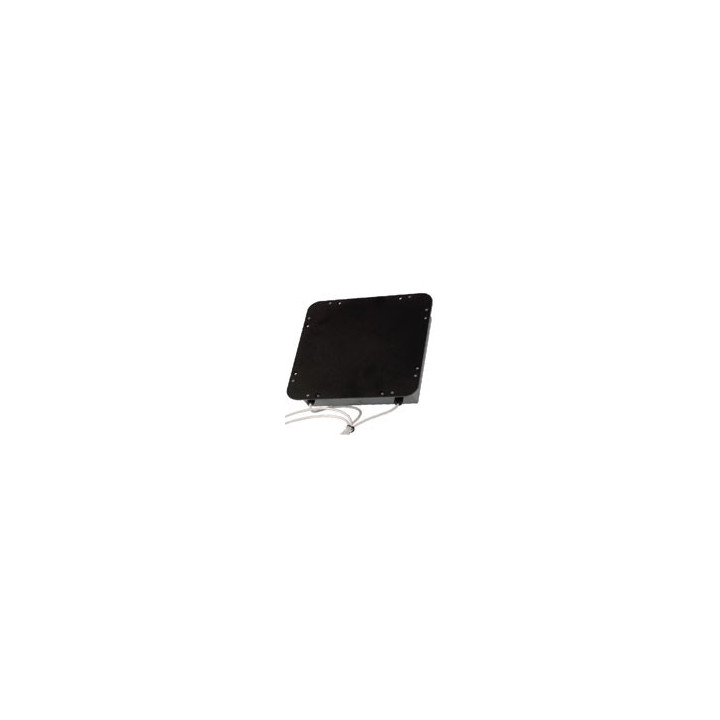

902-928MHz, LH Circular Polarization RFID UHF Near Field Antenna, bottom-entry coax, 72" coax, SMA-Male

Brand Laird Connectivity
Part Number PNL90206BC-183SMAM

Quick look

Product Features: Single Polarity
Antenna Types: Directional Panel
Frequencies: 800-980 MHz
$217.53
Pricing may be subject to tariffs.

1-888-WINNCOM / sales@winncom.com

Get your business the equipment it needs with LEAF.

UHF NEAR FIELD ANTENNAS OFFER IMPROVED PERFORMANCE


Laird Technologies' RFID UHF near field antennas offer improved performance over many UHF near field antennas. Designed using proprietary software optimization tools, these antennas provide uniform field strength across their entire aperture. There are no hot-spots or dead-spots, ensuring reliable tag reading no matter where the tag is placed on the antenna surface. The design is also much less susceptible to detuning in the proximity of metallic objects, or when a large number of tags are placed on the antenna for reading.


Two configurations of the product are available. One is a dual port configuration that utilizes polarization diversity, in order to provide operation in a dual mono-static mode. This antenna is ideal for use with multi-port readers. The other configuration is a single port antenna with circular polarization that can be used with either a single or multi-port reader.


Each configuration is available with a choice of either side-entry or bottom-entry coaxial feed.


Every model is available in a choice of two frequency ranges: 865 to 870 MHz, or 902 to 928 MHz.


FEATURES


* Circular or dual polarization versions


* Choice of side-entry or bottom-entry coax feed


* Choice of 856 to 870 MHz or 902 to 928 MHz


* Choice of coaxial feed length and connector type


* Uniform field strength across entire antenna surface


* Immune to detuning in the proximity of metal


Data Sheet

Product Features Single Polarity
Antenna Types Directional Panel
Frequencies 800-980 MHz
Antenna Sizes 1 foot and smaller
