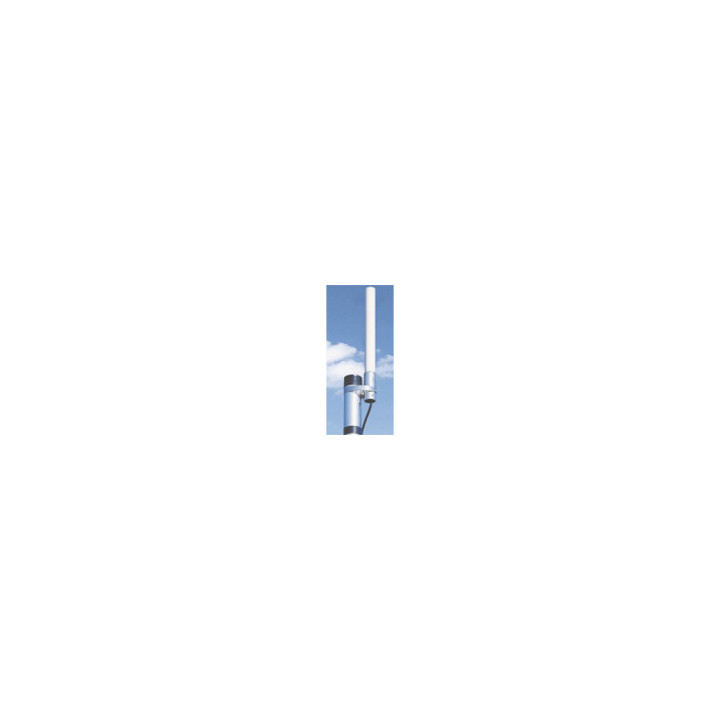

• 2400-2500MHz Fiberglass Omnidirectional Antenna

2400-2500MHz Fiberglass Omnidirectional Antenna, 5 dBi, Mast Mount, 12" coax, N-Female

Brand Laird Connectivity
Part Number S2403BP12NF

Quick look

Product Features: Vertical Polarization
Antenna Types: Omnidirectional
Frequencies: 2.3-2.7 GHz | 2.4 GHz
$55.92
Pricing may be subject to tariffs.

1-888-WINNCOM / sales@winncom.com

Get your business the equipment it needs with LEAF.

Special Purpose Omnidirectional Antennas



Cushcraft Corporation recently introduced two more ISM band data transmission omnidirectional antennas, the S2403BH and the S2403BP. Both antennas provide for transmission and reception of linearly polarized signals in the 2400-2500 MHz frequency band These antennas consists of a series fed, two element dipole array providing a nominal 3 dBd gain with a nominal 360 by 30 degrees half power beamwidth. Each antenna has a VSWR of 1.5:1 maximum on 50 ohms impedance. The enclosure is constructed of a durable polycarbonate. The S2403BP measures 1 inch in diameter, 11.5 inches in height and weighs 4 ounces. The S2403BH measures 1 inch in diameter, 11.5 inches in height and weighs 2 ounces. The antenna is an excellent choice for superior RF coverage in warehouses, auditoriums, shopping malls, industrial complexes and more. Standard models of the antennas are white in color. Installation options include a pole mount or suspended ceiling mount.


Data Sheet

Product Features Vertical Polarization
Antenna Types Omnidirectional
Frequencies 2.3-2.7 GHz | 2.4 GHz
