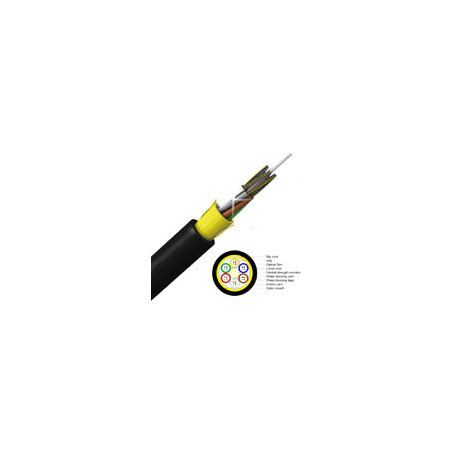

LiteLinx ADSS Fiber Cable, 48C, 400m Span, Aerial, Black, Loose Tube, Single Mode (OS2), 1km

ADSS Cable Single Sheath

The Fiber Optic Type ADSS (All-Dielectric Self-Supporting) Cable with a Single Sheath is engineered to excel in demanding applications, with a primary design focus on impressive spans of 100 to 200 meters (notably, specific models extend this to spans of up to 600 meters). This cable stands as a testament to its robust and dependable nature, delivering a dependable solution for high-speed data transmission. Its innovative structure has been meticulously crafted to provide optimal performance and exceptional durability, ensuring that it meets the highest standards of reliability in the field.

Highlights:

- Resistant to Environmental Factors: Withstand wind, ice, and temperature changes, expanding and contracting as needed.

- Low Installation Cost: Cost-effective due to their self-supporting design, ideal for challenging terrains.

- Lightweight and Compact: Easy to handle thanks to their dielectric design.

- Low Maintenance: Require minimal maintenance with their non-metallic construction.

- Long-Haul Application: Long-haul telecommunications networks and remote or water-crossing locations.

Structure Design:

- Fiber 12-144F ITU-T G652D (A1 & A2 Glass options are available)

- Loose tube containing fibers and filled with a suitable water tightness filling compound

- Loose tubes SZ stranded around CSM

- Water blocking tape

- Aramid Yarn
