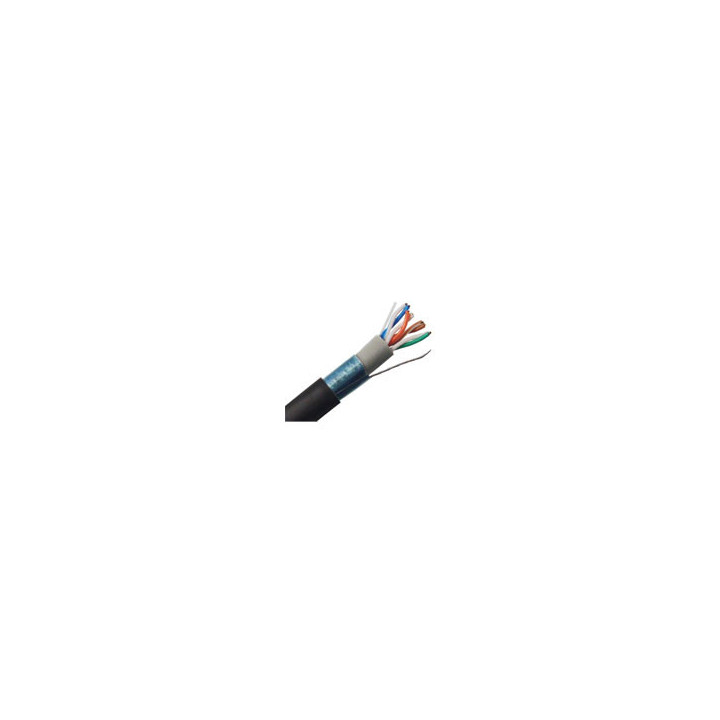

• High Quality Shielded CAT5E Cable

PRIM CAT5E,UV,Shielded,DB,WoodSp,Blk

Manufacturer Winncom Technologies
Part Number C5CMXT-2152BKWS
Out of stock
MIAMI DOMESTIC
0 in stock
SOLON
0 in stock

Quick look

Product Types: Twisted Pare Cables
Product Features: Cable Configurator | Cable Spools
Cable Types: Twisted Pair CAT5
$0.34
Pricing may be subject to tariffs.
This product is currently unavailable. Please call +1 888 946 6266 to check availability.

1-888-WINNCOM / sales@winncom.com

Available Monday through Friday, from 8:00 AM to 5:00 PM EST.

Shielded F/UTP 24 AWG 4 Pair 8 Solid Bare Copper Conductors, Waterblock Tape, Black UV CMX PVC Jacket


Applications


* 10/100/1000Base-T


* 100Base-VG


* 155 Mbps and 622-Mpbs ATM


Compliance


* ISO/IEC 11801


* TIA/EIA-568-C.2 Category 5e


* ANSI/ICEA S-90-661 Category 5e


* NEMA WC63.1 Category 5e


* RoHS Compliance for the Requirement of European Union Issued Directive 2002/95/EC


Physical Characteristics


* Conductor Size: 24AWG


* Conductor Material: Solid Bare Copper


* Insulation Material: High Density Polyethylene (HDPE)


* Insulation Diameter: 0.88 ± 0.03mm


* Number of Conductors: 8 Conductors


* Number of Pairs: 4 Pairs


* Outer Jacket Rip Cord: Yes


* Outer Shield Material: AL Foil/Mylar


* Drain Wire: Tinned Copper 0.45mm


* Outer Jacket Material: LSZH


* Outer Jacket Diameter: 6.6mm ± 0.5mm


Cable Features


* Tested to 350MHz


* Meets or Exceeds CAT5E TIA568 C.2 Standards


* Cable is Marked in Descending Order so You Always Know How Much Cable is Left


* Extra Headroom Provides Room for Growth


* Low Attenuation and Power-Sum Crosstalk


Construction Facts


* This Outdoor Direct Burial Cable has HDPE Insulation


* AL Foil Shielding is used to eliminate interference in noisy environments


* The Cable Includes Waterblock Tape for Added Moisture Protection


* Longitudinal Rip Cord for Easy Jacket Opening


Cable Put-Ups


* Supplied in 1000ft Increments in a Pull Box and/or Wooden Spool


Data Sheet

Product Types Twisted Pare Cables
Product Features Cable Configurator | Cable Spools
Cable Types Twisted Pair CAT5
Product line Cable Products
E-commerce relevant No
