• SignalHawk HandHeld Spectrum Analyzer with ability to

SignalHawk HandHeld Spectrum Analyzer with ability to triangulate the location of an interferer, 9kHz to 6GHz, SOI

Brand Bird
Part Number SH-60S-AOA
$13,182.00
Pricing may be subject to tariffs.

1-888-WINNCOM / sales@winncom.com

Get your business the equipment it needs with LEAF.

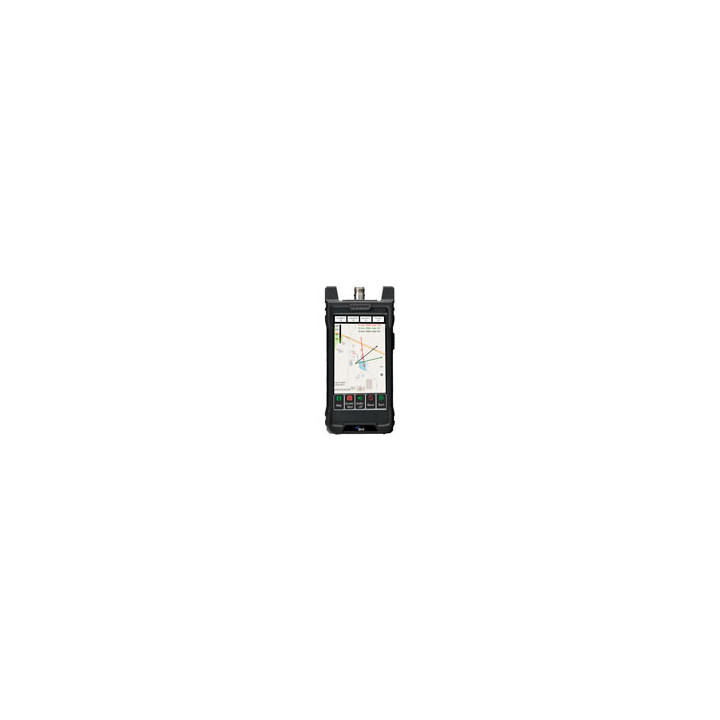

Handheld Spectrum Analyzer SignalHawk[tm] SH-60S-AOA


The SH-60S-AOA extends the capability of the SH-60S-TC by adding the ability to triangulate the location of an interferer on a map for signals between 9 kHz and 6 GHz. Highly portable, the SH-60S-AOA easily fits in one hand and boasts an intuitive touchscreen user interface.


Leveraging mapping technology from OpenStreetMap, users can triangulate the source of an interferer by measuring power levels. In addition, the multi-touch technology, users will find a high-resolution touchscreen with familiar, easy to use, methods for setting up and use the RF spectrum analyzer. Field engineers, technicians, wireless equipment manufacturers, service providers, contractors, tower erectors and military personnel alike have come to trust the precision results and efficiency of SignalHawk[tm].


Predefined Measurements Include:


* Channel Power


* Adjacent Channel Power Ratio (ACPR)


* Phase Noise


* N dB Down bandwidth


* Occupied Bandwidth (OBW)


* Field Strength


* FM demodulation


* CNR Loss (GNSS signal quality)


* Spectrum Masking and limit lines
