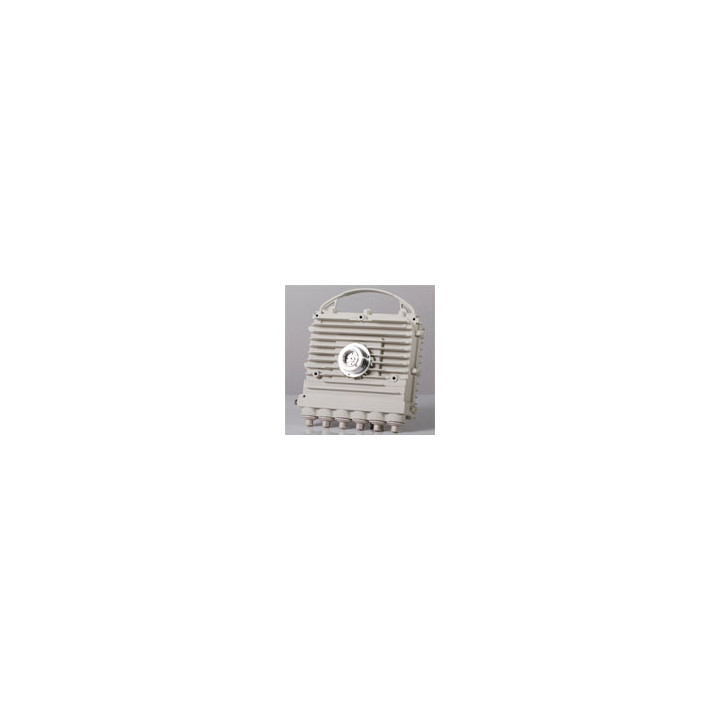

EtherHaul-2500FX E-Band 80GHz FDD ODU with Adapter for External Antenna, Tx High transmitting at 81-86GHz. 1Gbps upgradable to 2

EtherHaul[tm]-2500 Series - Efficient 2Gbps E-band radio with extended range

The EH-2500 series provides 2Gbps full-duplex capacity with extended range for accelerating broadband deployment in urban, suburban or rural areas. The carrier grade radio delivers fiber-like performance, reliability and throughput, with low CAPEX.

Applications for a Wide Range of Markets

* Business Broadband

* Video Surveillance Networks

* GTTH - Gigabit To The Home

* Campus Connectivity

* Mobile Backhaul

* Smart City

Robust & Futureproof

The EH-2500 series delivers up to 2Gbps full duplex point-to-point wireless Ethernet connectivity, achieved at only QAM32 modulation, that will future proof your network. Operating over the interference-free 71-76/81-86GHz band, the EH-2500 makes it easy for providers and enterprises to extend their networks maintaining fiber-like performance.

Carrier Grade Performance and Reliability

High throughput and low latency combine to deliver fiber-like performance. Siklu's EH-2500 series hitless adaptive bandwidth coding and modulation, synced with user configurable 8 levels H-QoS, ensure correlated payload prioritization for high availability. An integrated L2 switch with fiber and copper ports enable implementation in resilient topologies like cascade or ring, without the need for additional equipment. In addition, the F series is designed for mobile operators, with built-in Sync-E and 1588v2 ensures the precise TDM synchronization across IP/MPLS/Ethernet backhaul networks.

Small Size, Easy to Deploy & Manage

The all-outdoor radio has a tiny footprint that eases site acquisition. Its light weight and small size contribute to a quick and easy installation. Easy to use web GUI manages local and remote units and commissioning from a NOC is possible.

No Interference - Reliable Operations

Characterized by pencil thin beams, E-band radios guarantee no interference and high reliability. The EH-2500 series has 16 non-overlapping channels that are user selectable, and also support both vertical and horizontal polarizations, making it the most scalable solution on the market for dense deployments.

Easy Spectrum Acquisition Anywhere

The E-band spectrum is uncongested, even in dense urban areas. E-band offers low licensing fees and quick licensing processes, while maintaining the advantage of spectrum protection.

Based on Siklu's Field Proven Platform

The EH-2500 series with its extended-range variant is the 2Gbps evolution of the best-selling EtherHaul[tm] series - the world's top millimeter-wave radio. Tens of thousands of links have been deployed and are performing reliably in diverse weather conditions all over the globe.

Exceptional Value

The EH-2500F/FX has additional output power and wider channels, making it the longest reach carrier-grade 70/80GHz radios on the market. The advanced 2Gbps system delivers an unbeatable price per MB. Its small and light form factor and simplified commissioning lower installation costs, and its field proven high reliability reduces site visits.

Best ROI for any Application

The EH-2500 is available with multi-step licenses for scalable rollouts. Selectable antenna sizes match footprint with distance and link availability requirements.
