MINI-LINK 6363, ML6363 Complete Link, 11GHz, Subband 02L/H, Lo:10835-11055MHz, Hi:11345-11565MHz, 25 Mbps Base Capacity

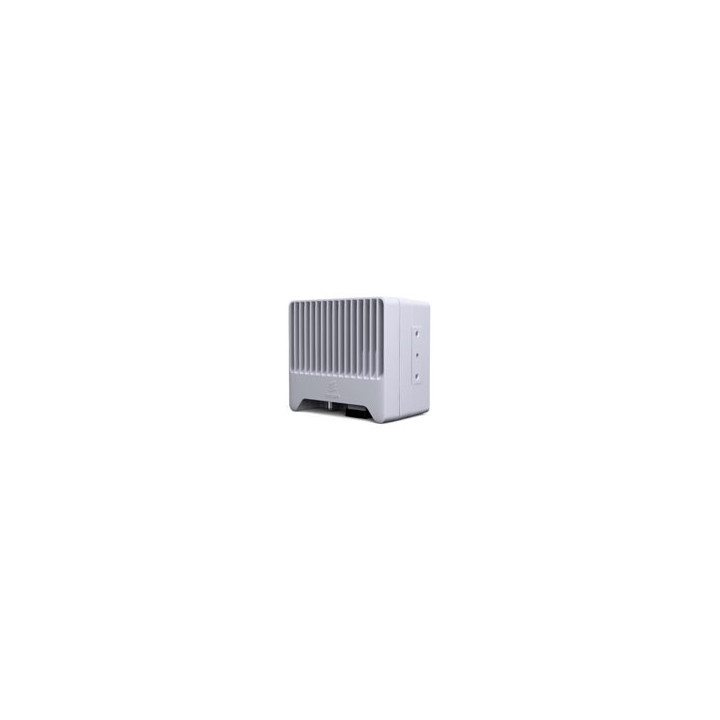

MINI-LINK 6363

The increasing complexity of today's and future networks requires flexible and well-integrated microwave nodes. Building an efficient microwave backhaul network with end-to-end performance in mind, requires high node capacity, compact and modular building practice, advanced packet functionality and features that are aligned and backward-compatible across different network nodes. The microwave nodes also need to be capable of handling single hops as well as advanced hub sites for larger networks. The MINI-LINK network node has shown to reduce product investment by 40 percent compared with a `hop-by-hop' approach. By combining MINI-LINK outdoor units and indoor units, all network scenarios are supported with superior performance and lowest possible cost of ownership.

Ericsson is the market leader in microwave transmission and has over 40 years of microwave experience with more than 4 million radio units delivered to over 180 countries.

High capacities in a compact format

The MINI LINK 6363 is to be used in split systems together with nodes MINI-LINK 6600, MINI-LINK 6366, MIN-LINK TN and MINI-LINK CN. It connects to the node via a coaxial cable. In a very compact format, it supports gigabit capacities in traditional frequency bands as well as in E-band. The high output power caters for the need of high capacities and high availability, providing superior network performance.

World's smallest high power radio

MINI-LINK 6363 builds on the strengths from the world´s most widely deployed microwave radio MINI-LINK RAU2 X. The footprint has been reduced by 65% and weight by 35% compared to RAU2 X. This enables easier and faster installations as well as less wind load on towers.

Two versions

MINI-LINK 6363 comes in two versions. MINI-LINK 6363, optimized for highest system gain, and MINI-LINK 6363/2 optimized for lowest power consumption.
