CER IP-50E 80GHz AO HP,TxHi,10GbE,ESSQ

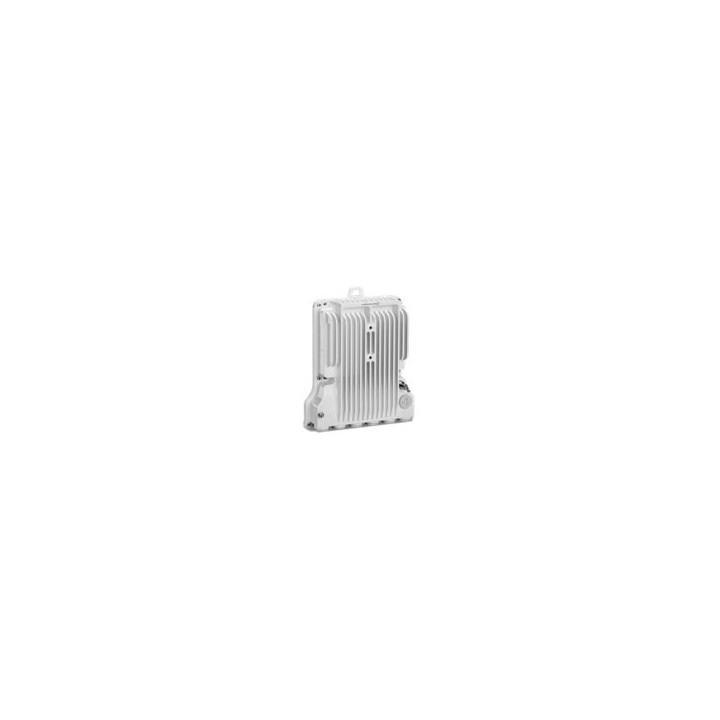

IP-50E - 20Gbps/link Universal E-Band Radio

The IP-50E universal E-Band radio introduces ultra-high capacity of up to 20Gbps to your network, supporting a pay-as-you-grow strategy with up to two units in XPIC configuration with layer-1 carrier bonding over a single cable. Wherever you need fiber-like capacity for fronthaul, backhaul or wireless access applications, the IP-50E is your cost-efficient, easy-to-deploy fiber-replacement solution.

The IP-50E also allows extended E-Band reach with no compromise on availability, thanks to its unique multiband capability. Using layer-1 carrier bonding, the IP-50E enables you to combine this high-capacity carrier with any additional microwave, fiber or leased line connection, thereby insuring your high-priority service offering meets its SLA target.

Combined with Ceragon's IP-50C or IP-20C radio and a multiband antenna, you can achieve a compact, all-outdoor, direct-mount 3-carrier solution (single-carrier E-Band + two-carrier microwave). This saves on tower load and shelter requirements while simplifying installation, allowing faster time to market, and enhancing operational efficiency.

RADIO

* Radio capacity: 20Gbps (2+0 XPIC configuration, utilizing two units)

* Supported frequency bands: 71-86GHz

* Supported channel spacing: 62.5-2000MHz

* ACM steps: 9, BPSK-512QAM

* Antenna offering: parabolic, integrated flat panel (FCC, class-3 compliant), hitless multiband

INTERFACES

* 4 x 1/10GbE or 40GbE traffic interface (QSFP+)

* 1/10GbE traffic interface (SFP+, CPRI, eCPRI)

* 1GbE traffic interface (SFP) or 1/2.5GbE multiband port

* 1GbE management/PoE port

CAPACITY

* Networking capacity: 40Gbps

* Layer-1 carrier bonding: supports XPIC and multiband with any additional layer-1 connection
