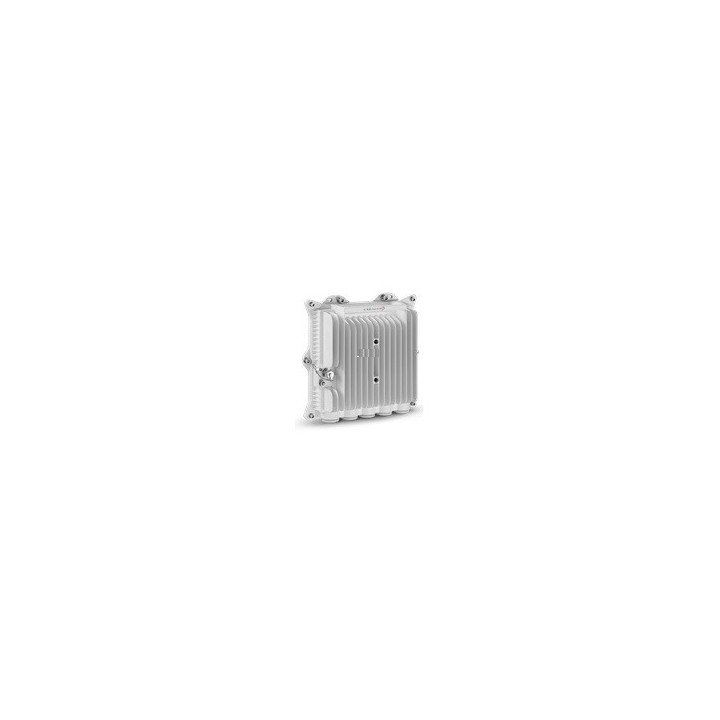

IP-50EXP Tx Power Activation Key

IP-50EX FAMILY - The smallest form factor, carrier grade mmW radio

The IP-50EX family provides up to 10 Gbps capacity in 1+0 configurations. In a 2+0 XPIC configuration, the IP-50EX family provides up to 20 Gbps, with seamless traffic distribution and improved link survivability. As a carrier-grade solution, it comes equipped with an integrated carrier Ethernet services switch that includes a 25 GbE traffic interface making it easier to connect to similar interfaces. The carrier Ethernet services switch also complies with MEF CE 2.0 and SLA requirements for essential services applications.

The IP-50EX family features adaptive coding modulation and bandwidth (ACMB), providing hitless transmission and efficient modification of the radio's modulation and channel bandwidth, in order to cope with fading conditions. IP-50EX's versatile design makes it a great candidate for a diverse range of networking requirements, including everything from macro site backhaul to small cell connectivity and building-to-building connections.

Its dependable performance and advanced features make the IP-50EX an excellent choice for networks requiring enhanced capacity and efficient, compact deployment options.

Meet the IP-50EX Family

IP-50EX: The smallest, lightest carrier grade radio delivering 10 Gbps in a box

IP-50EX-P: A powerful radio with high transmit power of 24 dBm, PoE-in and user data

encryption enabling you to cover longer distances with higher availability

IP-50EXA: A state-of-the-art, multiband/multi-box radio enabling up to 20 Gbps reliable

IP-50EX FAMILY Product Specifications

* Supported frequency bands: 71-86 GHz

* Radio capacity: 10 Gbps/20 Gbps for 2+0 XPIC

* Supported channel spacing: 250-2000 MHz

* ACM steps: 11, ½ BPSK-1024QAM

* High TX Power up to 24 dBm

* Antenna options: Parabolic / Integrated flat panel (future release) / E-Stabilizer (2, 3 ft)

* 1+1 HSB protection

NETWORKING

* IEEE 802.1d transparent bridging

* Supports XPIC and multiband

* Networking: integrated carrier Ethernet switching capabilities, MEF carrier Ethernet 2.0 compliant; carrier-grade service resiliency (G.8032, MSTP); SyncE and 1588 synchronization; ITU-T Y.1731 fault and performance management (MEF 35); SDN | layer 3 (using IP-50FX)

* Security: AES radio encryption; secured protocols and management interfaces (HTTPS, TLS, SSH, SNMPv3)

INTERFACES

* 2 x 1/10/25 GbE traffic interface (SFP28)

* 1/10 GbE traffic interface (SFP+, eCPRI)

* 1 GbE management/PoE port

* QSFP protection/XPIC or 1 x10 GbE (2x10 Gbe for IP-50EXA)
