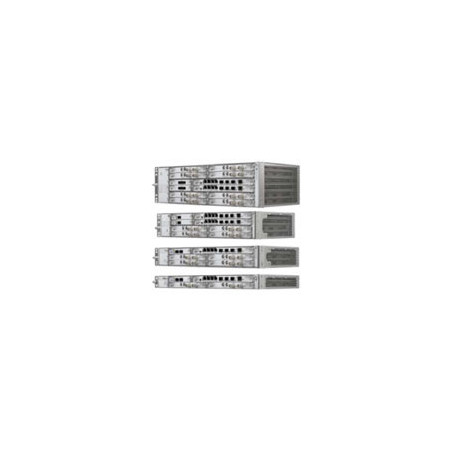

MINI-LINK 6691, ML6691 Small and flexible node with a height of 1U for small aggregation hubs up to 4 radio links

MINI-LINK 6600

Building an efficient microwave backhaul network with end-to-end performance in mind; requires high node capacity, compact and modular building practice and advanced packet functionality. The microwave nodes also need to be capable of handling single hops as well as advanced hub sites for larger networks. By combining MINI-LINK outdoor units and indoor units, all network scenarios are supported with superior performance and lowest possible cost of ownership.

High Capacity Node and Radio Link

MINI-LINK 6600 is the high capacity indoor node in a split-mounted microwave system. It supports switching capacity up to 90 Gbps and market leading split mount Radio Links up to 2.5Gbps using 112MHz and 4096QAM modulation. It also supports 10G interfaces for high capacity interconnect or use of very high capacity E-band radio links.

Advanced Packet Functionality

MINI-LINK 6600 has an integrated Ethernet switch/router supporting Customer and Provider mode switching and IP Routing and MPLS L3 VPN.

Flexible and modular building practice

In MINI-LINK 6600, compact nodes as well as modular nodes using plug-in units are available. This makes it easy to customize configurations. The full range of MINI-LINK outdoor units can easily be combined in many different ways: traditional frequencies (6-42 GHz), Vband 60 GHz, E-band 70/80 GHz, single and dual carrier, Coax and Ethernet interface.

Efficient network migration

MINI-LINK 6600 support any network migration from one generation of Radio technology to next on the Road to 5G. There is a topology flexibility in MINILINK 6600 to build hop based, tree, stars or ring based topologies to best support the network need.

For cost efficient migration MINI-LINK 6600 is hop compatible with MINI-LINK TN. Upgrading to MINI-LINK 6600, the radio units, antennas, and cabling can be reused.
