SIK PoE ODU Ext.Antenna Port 700Mbps TDD

EtherHaul[tm] 700 Series: 70GHz Gigabit Wireless Bridge

Interference-free Ethernet everywhere

The EtherHaul[tm]-700 wireless bridge series delivers cost-efficient, interference-free, Ethernet connectivity. Operating over the uncongested lightly-licensed E-band, the point-to-point radio link is easily deployed on any street furniture or rooftop.

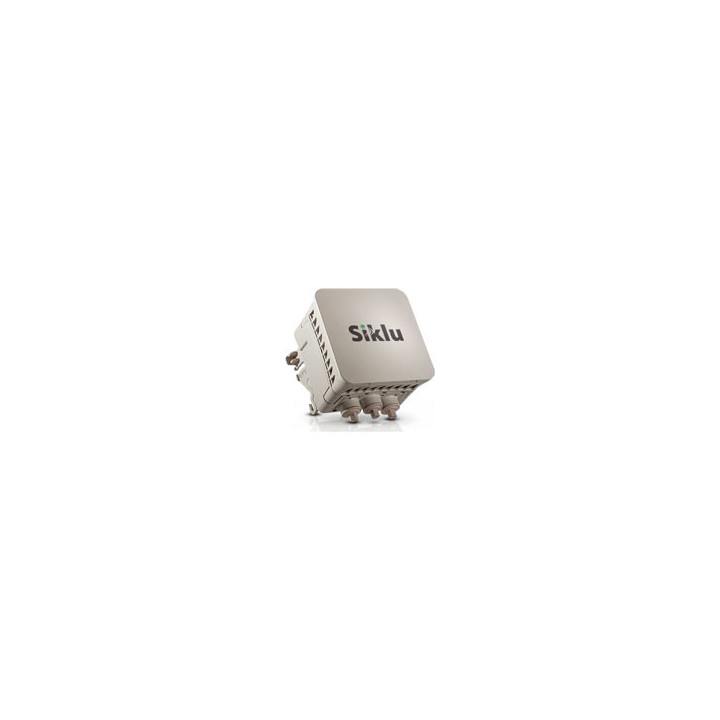

World's Smallest 70GHz Radio - less than 2 liters

The palm-sized radio simplifies site acquisition, and is quickly installed on any kind of street furniture or rooftop. The compact box solution incorporates, and comes with a choice of street-level 0.5ft. or 1ft. and 2ft. rooftops antennas for longer range. A GbE switch, with PoE-in and dual PoE-out. Easily cascade radios and power external devices like video surveillance cameras and Wi-Fi access points.

Easy Spectrum Acquisition in Urban Areas

The 5000MHz-wide 70GHz spectrum is uncongested, even in dense urban areas. The combination of abundant spectrum and high-gain, pencil beam antennas guarantee channel availability everywhere,

and maximize spectrum re-use. The E-band also has low licensing fees and quick acquisition procedures.

Interference-Free and Predictable Performance

Characterized by pencil thin beams, E-band radios guarantee no-interference and high reliability. The EH-700 series has 32 nonoverlapping channels that are user selectable, making it the most scalable solution on the market for dense deployments.

Robust & Futureproof

The all weather IP-67 sealed radio guarantees carrier-grade performance under even the harshest weather conditions. The combination of high capacity and low latency, along with the integrated switch and extra ports enables deployment in ring, mesh or extended cascading, with fewer aggregation units needed. The EH-700 also incorporates. The EH-700 assures flawless critical services delivery at any weather condition due to prioritized payloads with 8 levels of carrier-grade QoS, synced with hitless adaptive modulations.

Wide Range of Applications

- Video Surveillance Connectivity (CCTV)

- Wi-Fi Hotspot Backhaul

- Business and Residential Broadband

- Campus Connectivity

- Mobile Backhaul
