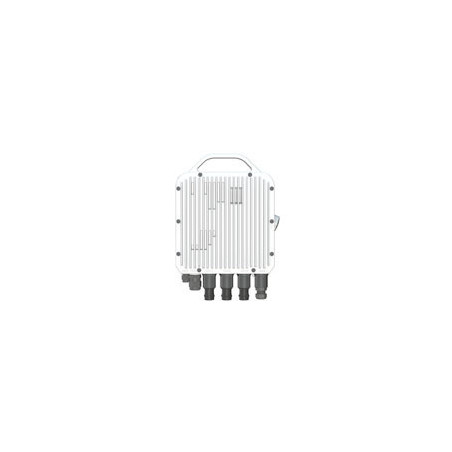

Navigator Dual Transceiver Radio, 23GHz, TR1008, B2, Standard Channel Bandwidth, 100 Mbps / XCVR with QoS, ACM, 1xSFP (1Gbps), L

NAVIGATOR DT Dual Transceiver All-Outdoor Licensed Microwave Gigabit Radio

NAVIGATOR DT is a dual-transceiver all outdoor, IP radio operating from 6GHz to 42GHz, modulations to 4096QAM, and ultra-wide bandwidth operation to 112MHz ETSI and 160MHz ANSI. NAVIGATOR DT can achieve capacities up to 5.5Gbps per radio without compression.

Each NAVIGATOR DT transceiver supports dual sub-carriers resulting in up to four sub-carriers per dual transceiver radio to increase capacity without requiring any additional equipment.

NAVIGATOR DT also includes XPIC and MIMO frequency re-use technologies to double and quadruple capacity using a single licensed channel. XPIC and 2+0 operation are supported using just a single radio.

NAVIGATOR DT is easily and inexpensively field convertible to different sub-bands via user friendly customer replaceable diplexers. Sparing only needs to include the base radio resulting in no longer a need to spare radios in specific sub-bands.

NAVIGATOR DT is an ideal, highly integrated all-outdoor radio for the most demanding applications.

Performance

* Up to 5.5Gbps per radio using quad sub-carriers without compression

* Dual transceivers with each transceiver supporting single carrier or dual sub-carrier operation to efficiently increase capacity without adding any more equipment

* QPSK to 4096QAM

* Ultra wide bandwidth operation to 160MHz ANSI and 112MHz ETSI

* 2x (1+0), 1+1 HSB, 2+0, 2+2 HSB, and 4+0 operation

* XPIC supported using a single dual transceiver radio

* LOS 4x4 MIMO to quadruple capacity and 2x2 MIMO to double capacity using only a single license

* Space Diversity and Frequency Diversity available

* Built-in Advanced Digital Pre-Distortion to drive higher transmission performance

* Customer replaceable diplexers to ease operational logistics and improve system flexibility

* Built-in OMT or coupler to combine carriers from each transceiver

* Different frequencies supported in single dual carrier radio (e.g. 6GHz and 11GHz)

* Adaptable antenna interface supports third party antennas to ease migration and upgrade

* Header and payload compression to further increase capacity

* 2 x 10GbE Ethernet interfaces (optional)

* 2 x CPRI interfaces (optional)

* SyncE and IEEE1588v2

* AES256 encryption

* No-touch WiFi maintenance interface (optional)

* GPS antenna (optional)

* Time based feature licensing available

Applications

Whatever your business or the goals for your network infrastructure, EtherFlex Navigator can play a critical role in backhaul performance, reliability, and security.

* 4G/5G backhaul

* Fiber extension

* Fiber backup

* Leased line replacement

* Small cell backhaul

* Campus connectivity

* Disaster recovery
