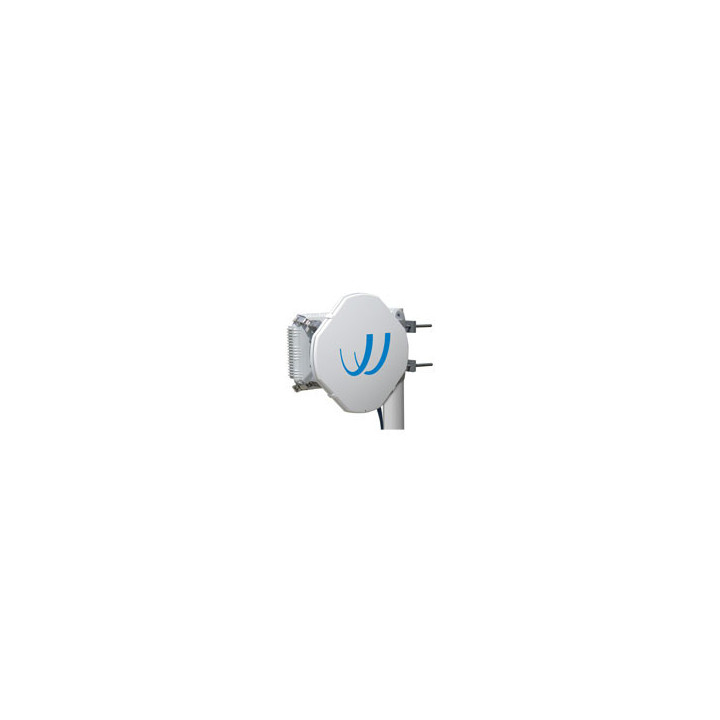

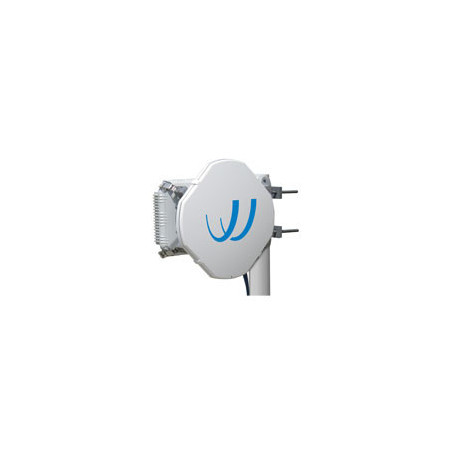

FLEX4G-1000 Synchronous Ethernet (SyncE) and 1588V2 Timing Option software license (Price is per link)

FLEX4G-LITE - Spectrum-Efficient 1Gbps Links

The BridgeWave Flex4G-1000 (ANSI) is an all outdoor, IP radio system operating in the 71-86GHz frequency band with capacities up to 1Gbps. Supporting both POE and direct DC feed, this compact radio system features carrier-grade Ethernet switch functionality, hitless adaptive rate modulation, and low power consumption.

BridgeWave Flex4G-1000 (ANSI) is available with externally mounted 30cm, 60cm, or 90cm antennas for ultra-long range.

The BridgeWave Flex4G-1000 (ANSI) enables network operators to meet exponentially-increasing backhaul requirements and is field-proven with thousands of links already in use worldwide.

Performance

* Spectrum efficient using 64QAM in 250, 500, and 750MHz wide channels

* Full-duplex providing up to 1Gbps upstream and downstream

* Hitless adaptive rate and modulation

* QPSK/8PSK/16/32/64QAM modulation support

* Highest system gain

* Internal carrier grade L2 switch

* SyncE and IEEE1588v2 compliant

* Power over Ethernet and Direct DC

* Extreme ranges supported with optional 30cm (43.8dBi), 60cm (51dBi), and 90cm (54dBi) external slip-fit antennas

* Small form factor and lightweight

* Quick and simple deployment

Security:

* Highly secure narrow beamwidth antennas

* FIPS-197 compliant AES Encryption provides the ultimate in data protection at full line rate gigabit speeds with minimal latency

Applications

* 4G/LTE backhaul for access and aggregation

* Last-mile fiber extension for enterprises

* Temporary high capacity links for disaster recovery

* LAN extensions
