• AFL FASTConnect Field-Installable Connectors

AFL FASTConnect Field-Installable Connectors, Multimode OM3/OM4 (50/125), 900um cable, Aqua SC, 100-Pack

Marca AFL
Part Number FAST-SC-MM50L-100

Quick look

Product Types: Connectors Barrel Adapters
Cable Types: Multimode Fiber Optic

(edytuj w module Customer Reassurance)

(edytuj w module Customer Reassurance)

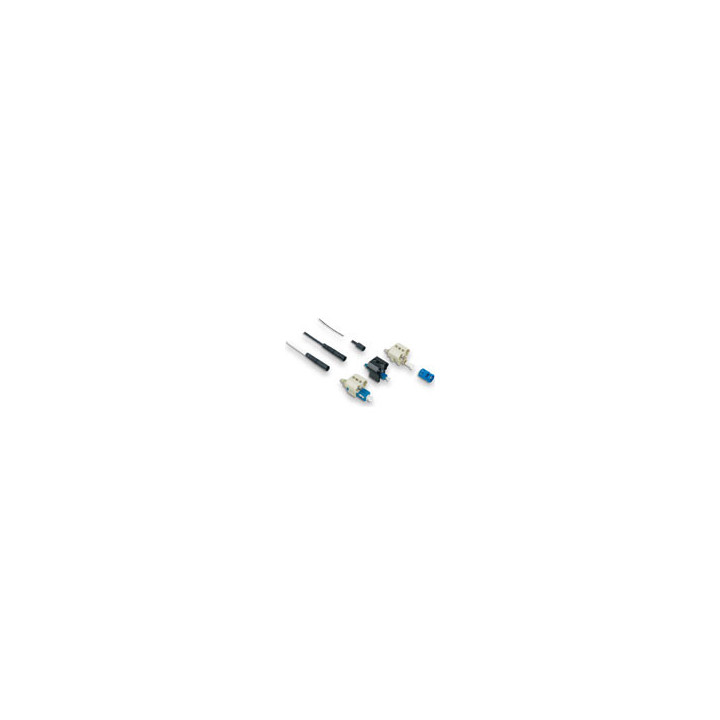

FASTConnect® Field-Installable Connectors


FASTConnect are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers. FASTConnect are compatible with 250 ìm and 900 ìm optical fibers, as well as 4.8 mm (SC only) cordage.


All primary fiber types are supported, and each connector is color coded per industry standard requirements to aid in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination. Incorporated into this device is an innovative, translucent wedge enabling the use of a common VFI to provide a "pass/fail" signal once physical contact is achieved.


Features


* No epoxy, no Polish


* Low insertion loss


* Fiber can be reinserted up to three times


* 4.8 mm (SC only) cordage compatibility


* VFI accessory to confirm proper installation


Data Sheet

Product Types Connectors Barrel Adapters
Cable Types Multimode Fiber Optic
