Modular Series Intelligent 2RU High Power Shelf Redundant Hot Swappable Rectifier System with Two Load Distribution Modules, +48

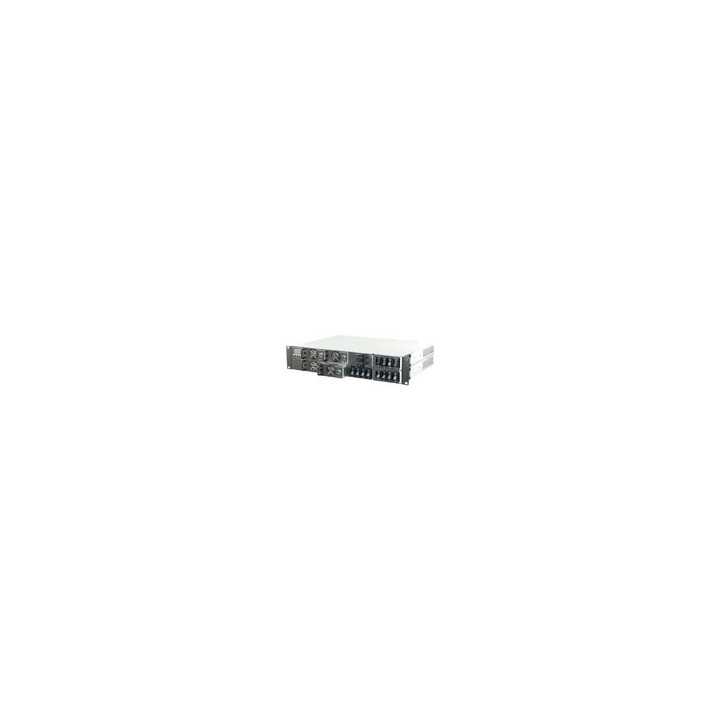

MPS Ultra - 2RU Redundant Hot Swap Modular DC Power System

The ICT MPS Ultra provides hot swappable, N+1 redundancy for power requirements up to 5.6kW. Available for 48, 24 or 12 volt DC applications, MPS Ultra systems are preconfigured at the factory to provide fast, easy installation at the site. Every model includes the ICT Intelligent Control Module to provide full TCP/IP remote monitoring and control of all system functions.

A variety of battery management and load distribution combinations are available to suit your requirements.

Power Chassis

- 2RU Power Chassis configured at factory for fast, easy installation

- All connections are accessible from the rear, with no covers to remove during setup

- Accepts 48, 24 or 12 volt DC hot-swappable ICT 700 watt Power Modules

Integrated Intelligent Control Module

- TCP/IP remote Ethernet communications for monitoring and control of all system parameters through a single I.P. address and fully integrated user interface

- Embedded web server for plug and play set up HTTP/HTTPS, SMTP, SNMPv1/v2c/v3 protocols supported

- Alarms can be sent to multiple email accounts

- Four site monitoring sensor inputs with alarm reporting

- Data logging

- Password protection with multiple security levels

Load Distribution Module (2.8, 3.5 and 4.2kW models)

- Load current monitoring and alarm reporting of each output for pinpointing of issues with connected loads

- Outputs can be power cycled individually over Ethernet

- Adjustable alarm and load-shed settings for each output

- 8 or 12 outputs, max. 30A circuit breakers

Battery Management Features (2.8 and 3.5KW models)

- Temperature compensated charging, display of battery voltage, status, battery current, state of charge, and run time remaining

- Adjust LVD settings remotely

- Configure advanced battery management features such as boost charge parameters, max charge current, battery capacity, battery test timer, and battery discharge testing

700 Watt Power Modules (order separately)

- 100-300 volts AC input with Power Factor Correction

- 48, 24 or 12VDC volts nominal DC output

- 90-93% efficiency

- -30 to +60C operating temperature range
