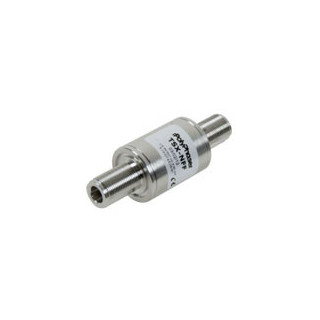

• PolyPhaser SX Series DC Block RF Lightning Protector

PolyPhaser SX Series DC Block RF Lightning Protector, 2-6GHz, N-Male to N-Female

Marca PolyPhaser
Part Number AL-LSXM-ME

Quick look

Product Types: Lightning Arrestors
$72.99
Pricing may be subject to tariffs.

(edytuj w module Customer Reassurance)

(edytuj w module Customer Reassurance)

Patented SX radio frequency dc blocked filter protectors are ideal for RF coaxial applications where dc is not required.


Features


- UL 497B


- RoHS compliant


- High surge current capability


- Low let-through voltage and throughput energy


- DC shorted filter design, no dc continuity between center pins


- Ideal use for applicaitons where dc is not required on the coaxial cable


- Fully weatherized housing


- Elongated female connector allows for mounting through a 1/4" bulkhead or grounding bar


- Multi-strike capability


Specifications for AL-LSXM


Mount Type - Bulkhead Mount


Standards - CE Compliant, RoHS Compliant


Max Surge Current - 10 kA per 61000-4-5 8/20 µs waveform


Frequency Range - 2.0GHz to 6.0GHz


Protected Side Connector - N Male


Surge Side Connector - N Female


VSWR - = 1.2 to 1 Typical (=1.3 TO 1 Max.)


Insertion Loss - = 0.1 dB Typical, (= 0.2 dB Max)


RF Power - 10 W


Dimensions (Inches) - 2.7 x 0.5 x 0.5


Data Sheet
