• Base Station Sector Antenna

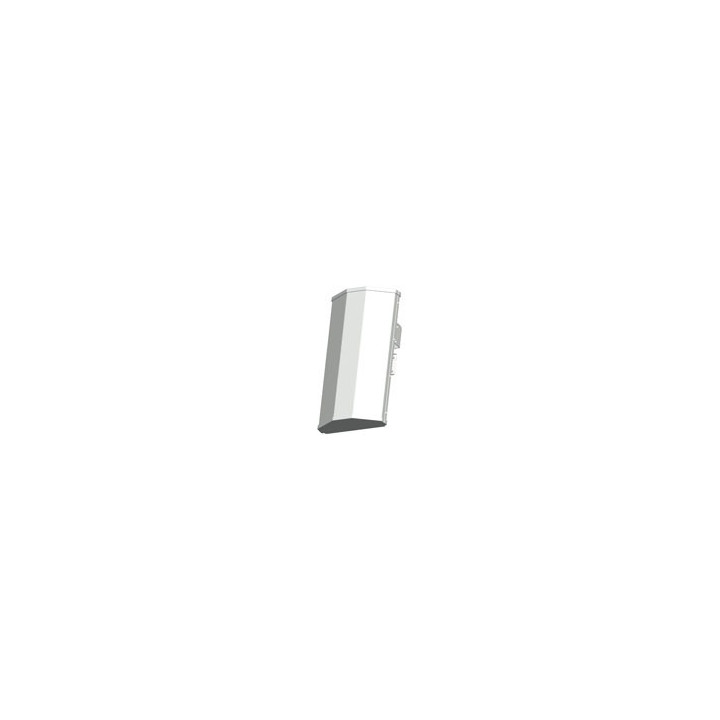

Base Station Sector Antenna, 4900-5970MHz, Ports: 8, Beamwidth: 65 degree, Gain: 18.0 dBi, Tilt: Fixed, Side Angle

Marca Alpha Wireless
Part Number AW3798-T2-H

Quick look

Product Features: Dual Polarity | MIMO Antennas
Antenna Types: Sectorized
Antenna Sector Sizes: 60 degree

(edytuj w module Customer Reassurance)

(edytuj w module Customer Reassurance)

AW3798-T2-H - 4900-5970MHz, 8 port, 18 dBi, 65° with Fixed Tilt


The AW3798 has been developed for use with two Cambium ePMP 3000 Radios. On the back of the antenna housing there are two mounting locations for the Cambium radios. The ePMP 3000 is a four-port radio. AW3798 has 8 ports located on the back of the antenna which feed the two 4 port sectors.


- Radio A is connected to Sector A ports 1 - 4


- Radio B is connected to Sector B ports 5 - 8


- Sectors A and B are orientated with 60° Azimuth separation.


Product covers the following frequency bands:


- U-NII - Low / 1 / Indoor / Mid / 2A / 2B - (5.150 - 5.470GHz)


- U-NII - Worldwide / 2C / 2-Extended / 2e / Upper / 3 / DSRC /


- ITS / 4 - (5.470 - 5.925GHz)


The AW3798 has been designed for a six-sector site application. Each AW3798 houses two sectors with 60° Azimuth separation. When combined with two other AW3798 units positioned at 120° Azimuth separation, this results in 360° Azimuth coverage with sectors positioned at every 60°. The form factor of 25" height and 12" width, with radios mounted behind provides a compact solution that occupies minimal tower space.


Data Sheet

Product Features Dual Polarity | MIMO Antennas
Antenna Types Sectorized
Antenna Sector Sizes 60 degree
Frequencies 4.9-5.8 GHz | 5.2 GHz | 5.4 GHz | 5.8 GHz
