5.725-5.85GHz 13 dBi Wi-Fi Bi-Directional Blade Antenna, Direct N-Jack Connector, SOI

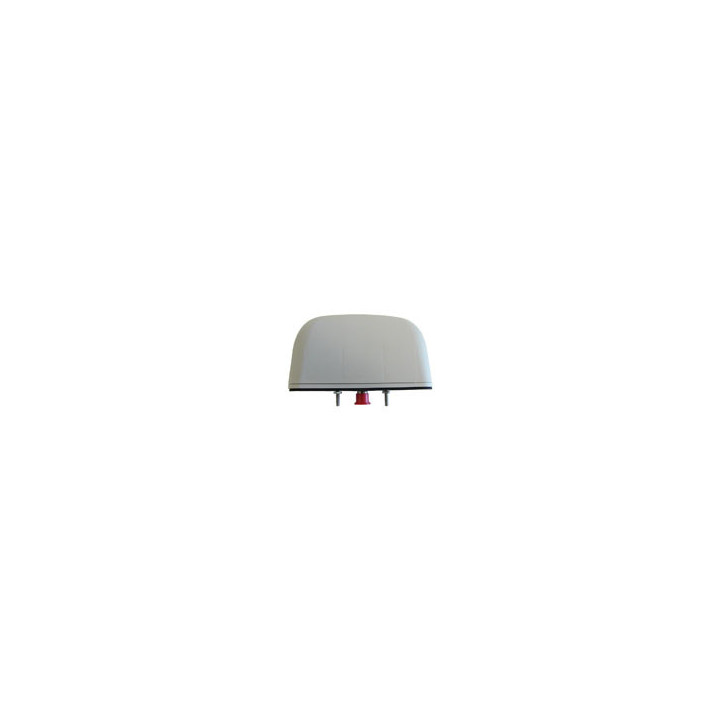

BD-5900 Blade Style DSRC Antenna

* Slim profile; dependable link

* Mechanically sound, meets IPx7 water ingress standards

* Direct N Jack Connection

The BD-5900 antenna is designed for Utility Cabinets and NEMA Boxes, it can be mounted in any setting where a slim profile is desired. It offers outstanding electrical performance as well as a unique mechanical package.

Mobile Mark's BD-5900 blade-style antenna has a single element for 5.850 to 5.925 GHz DSRC in a slim, compact radome. It measures only 7 1/2'' long by 1 1/2'' deep and less than 4'' tall (19 cm x 3.8 cm x 10 cm).

This blade style antenna is ground-plane independent and designed to perform on either a fiberglass or metal box with up to a .20'' (5 mm) thick surface.

Using our new slim line package, the BD-5900 is a Bi-Directional antenna designed for DSRC 5.9 GHz surface mounted applications. This particular model comes with Direct N connection.

The base bolt is attached through a mounting hole that accommodates the DSRC connection. A special gasket preserves the IPx7 water ingress rating when properly mounted.

Two 5/8'' (1.6 cm) studs at the base of the antenna are attached through separate mounting holes to help prevent the antenna from rotating on the surface.

The BD-5900 has 50 OHM Nominal Impedance with a maximum power of 10 watts. In addition, the VSWR rating for this antenna is less than 2:1 over range.

The beamwidth for the BD-5900 comes in at 40° for Azimuth and 30° for Elevation. While no ground plane is required for this antenna, it does perform better on a metal ground plane. The electrical tilt beamwidth is 0° with no ground plane compared to 7° max uptilt with a ground plane.
